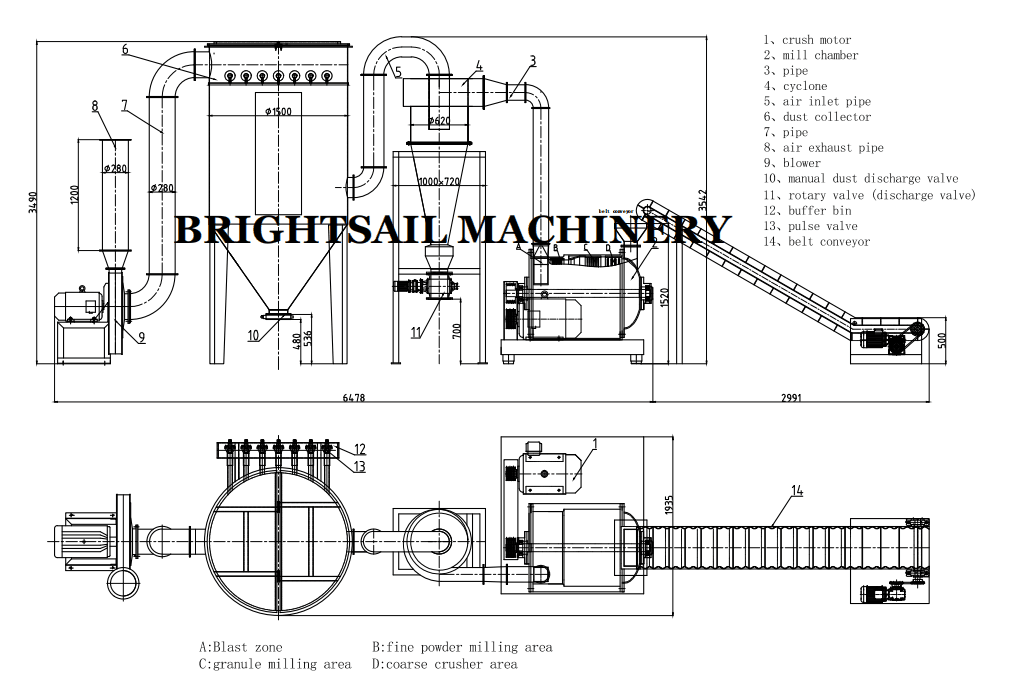

BSDF advanced hammer mill unit includes:

1) mill part

2) cyclone (discharge system)

3) dust collect system

4) blower

Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.

The production process is dust-free and continuous. BSDF chilli powder grinding machinery is suitable for grinding spices, like ginger, garlic, chilli...etc.

Main Features

1) No need screen or sieve in mill chamber, change powder particle size by changing speed;

2) Because it has no screen in mill chamber, when milling, there is no heat rising in mill chamber;

No need to worry powder get stuck in the screens or product quality get affected by the heat from the mill.

That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.

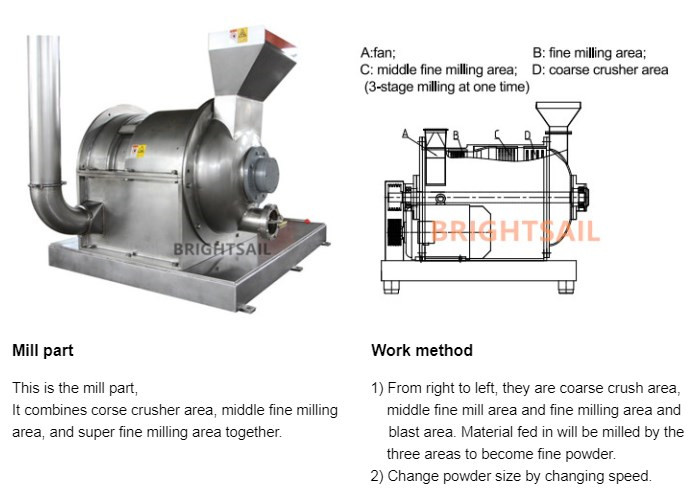

3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.

4) It can save more power, its capacity is much bigger than other same motor traditional mill.

Detailed Images

Applications

If you need small capacity or if you don't need fine powder, there are other different grinders for your choices.

capacity: 20-100 kg/h capacity: 70-150 kg/h capacity: 200-500 kg/h

The price of our smallest hammer grinder is 2700 USD. If you are interested in our BSDF grinding machine, please send us an inquiry for a detailed offer.

*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.

*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
