60 To 2500mesh Output Fineness Big Capacity Konjac Superfine
Grinding Mill
Product introduction:konjac superfine grinding mill
BSP cassia superfine pulverizing mill(air classifier mill) is one type grinder which can make very fine
powder. For sugar grinding, the output size can be 60~1000mesh. For
dried ginger and turmeric grinding, this type can also grind them
into very fine powder.And this grinder can produce powder very
evenly, the distribution of powder is very even.
Technical data:konjac superfine grinding mill
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:konjac superfine grinding mill
Material enters the mill chamber via screw conveyor where it is
sheared and milled by fast-rotating blades.The powder passes the
guide ring and enters the classifier chamber. As the classification
wheel is in rotation,both air force and centrifugal force act on
the powder. As the particles whose diameters are greater than the
critical diameter (diameter of the classification particles) have a
greater mass,they are thrown back into the mill chamber to be
ground again,while the particles whose diameters are smaller than
the critical diameter enter cyclone separator and dust-collecting
box.
Advantages:konjac superfine grinding mill
1. The design is compact and the structure is reasonable. A grading
mechanism is arranged in the material, so that grinding and grading
can be carried out at the same time and energy consumption is
reduced.
2. This machine is equipped with fan for continuous heat
dissipation, suitable for grinding of heat sensitive materials.
3. Strong adaptability and narrow particle size distribution.
Product granularity is even, fineness can reach 80-320 Mesh.
4. In the case of non-stop, adjust the speed or air classifier, can
achieve uniform particle size distribution of products.
5. The top cover of the main engine is opened by a pneumatic
spring. The structure of the main body can be opened on both sides
so that there are no obstructions when cleaning and repairing the
internal parts.
6. The main grinding parts used high-grade alloy tool steel,
greatly extended the wear parts of the service life or replacement
cycle.
7. The bearing system adopts imported high-speed precision bearing,
the whole machine runs smoothly with small vibration and low noise.
8. The pipeline has the quick disassembly structure, the
disassembly and the cleaning are convenient and quick.
9. Equipped with cyclone separator and dust collector, the
production process does not produce dust. The dust collecting bag
can effectively collect fine powder in the airflow, thereby meeting
the clean and environmental protection requirements of exhaust gas
emission.
10. The fine powder collected in the bag can be effectively
recycled. Reduce Material Wear and tear.
Grinding effect:konjac superfine grinding mill

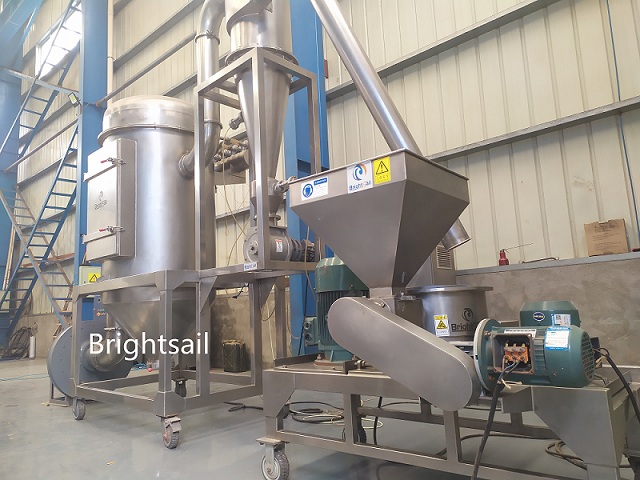

Detailed images:konjac superfine grinding mill
