Food Powder Mixer Horizontal Ribbon Mixing Whey Protein Plant
Machine

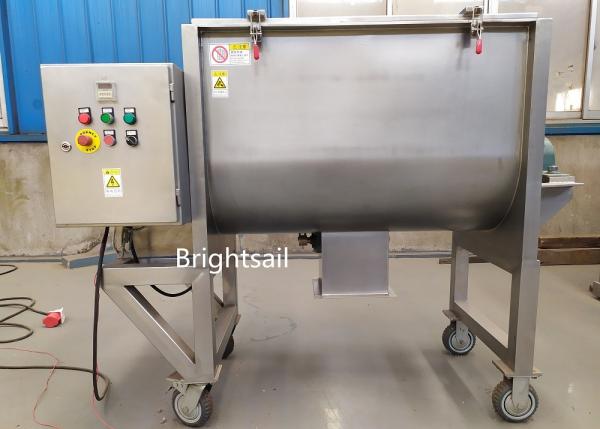

Our BSR ribbon mixer consists of a u-shaped trough, screw and drive
components. The Outer Helix delivers material moving from both
sides to the center, while the inner helix delivers material moving
from the center to both sides for efficient convection mixing. Can
Be mixed with a variety of materials, especially with a cohesive or
cohesive power of the powder, granular materials, or in the powder,
granular materials to add a small amount of liquid, and materials.
Technical data:whey protein powder blender
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
Working method:whey protein powder blender
The utility model is driven by an inner diameter and an outer
diameter screw installed on a stirring shaft to rotate the material
in the barrel so that the mixer can rotate the animals in the
barrel to the maximum extent. In the agitator structure, the spiral
design for the inside and outside of the reverse spiral, left and
right for the reverse spiral. When the agitator works, the inner
screw drives the material rotating shaft near the shaft, and the
axial direction is pushed inward to both sides. Axial rotation,
axial thrust from the two sides, so that the material in the Tube
convection, Shear, mixing, material in a short period of time,
rapid and uniform mixing.
Main features:whey protein powder blender
1. The u-shaped long cylinder structure ensures that the mixed
material (powder, semi-fluid) has low resistance to movement in the
cylinder.
2. The positive and negative rotating screw rods are installed on
the same horizontal axis to form a low-power, high-efficiency mixed
environment. The ribbon blades are generally made into two or three
layers. The outer spiral gathers the material on both sides into
the center and the inner layer. The spiral transports the material
from the center to both sides, so that the material forms more eddy
currents in the flow. Speed up the mixing speed and improve the
uniformity of mixing;
3. Unloading method at the bottom of the belt mixer: The powder
material adopts a pneumatic large opening structure, which has the
advantages of fast discharge and no slag;
4. For high-precision materials or semi-fluid materials, Manual
butterfly valves are pneumatic butterfly valves. The manual
butterfly valve is economical and applicable. Pneumatic butterfly
valve has good sealing performance for semi-fluid, but the cost is
higher than manual butterfly valve.
5. Where heating or cooling is required, a jacket can be
configured.
