Food Hygiene Grade Stainless Steel Large Capacity Peanut Butter
Maker Machine
Product Introduction:peanut butter making
Colloid mill machine is a machine for fine machining of fluid materials.This butter machine has the functions of ultra-fine crushing, dispersing, emulsifying,
homogenizing and mixing. After machine processing, the particle
size of the material can reach 2-50 microns, the uniformity can
reach 90% .
Peanut butter maker is an ideal equipment for ultra-fine machining.
This penut butter machine is suitable for ultra-fine grinding of wet material (pharmacy,
food, chemical industry, etc.) . The utility model has the
advantages of crushing, emulsifying, homogenizing and mixing
materials, etc. .
Technical Data:peanut butter making
| Model | Motor power
(kw) | Motor speed
(r/min) | Processing
fineness(um) | Capacity
(t/h) | Grinding disc
diameter(mm) | Cooling water
pipe(mm) | Outlet
(mm) | Inlet
(mm) | Weight
(kg) | Boundary dimension
(L*W*H)(mm) |
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features:peanut butter making
Sanitary food grade stainless steel. Except for the motor part, all
contact parts are made of stainless steel, especially the dynamic
and static grinding plates are made of reinforced materials, which
have good corrosion resistance and wear resistance. In this case,
the finished material is pollution-free and safe. The colloid mill
has the characteristics of compact design, beautiful appearance,
good sealing, stable performance, convenient operation and high
production efficiency. It is an ideal equipment for processing fine
materials. The motor and the base are separated in the split
colloid mill, with good stability, convenient operation, long
service life of the motor, avoiding material leakage and preventing
the motor from burning out. Labyrinth seal, no wear, corrosion
resistance, less trouble. The belt pulley is used to drive and
accelerate to break the material. The vertical colloid mill solves
the problem that the small colloid mill can not work continuously
for a long time due to insufficient power and poor sealing. The
motor is 220 V, which has the advantages of compact structure,
small volume, light weight, reliable sealing structure and long
continuous working time. It is especially suitable for small
enterprises and laboratories.

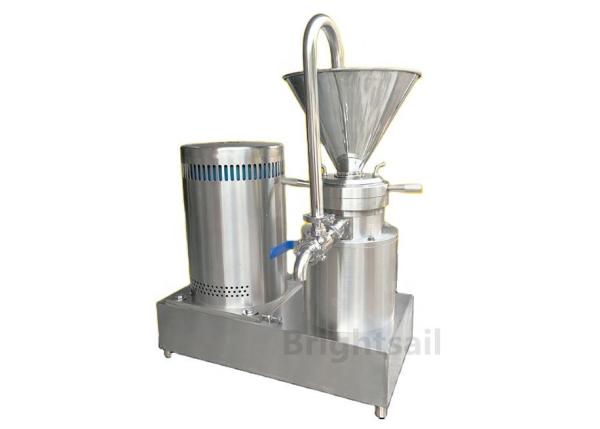

Detailed Picture:peanut butter making
How can I buy this machine?
First, discuss the details and prices of all machines with our
salesperson.
Second, confirm the price and payment terms. Trade guarantee / tt /
trusteeship / Western Union remittance, etc.
Thridy, send us a purchase order, confirm the proforma invoice and
arrange the deposit. Once we receive the deposit, we will arrange
production.
Finally, after the machine is ready, please arrange the balance to
us. After receiving the balance, we will arrange space booking and
send the machine to you.
