Hot Selling Large Capacity 100 To 1300kg Per Hour Oyster Shell
Crushing Machine

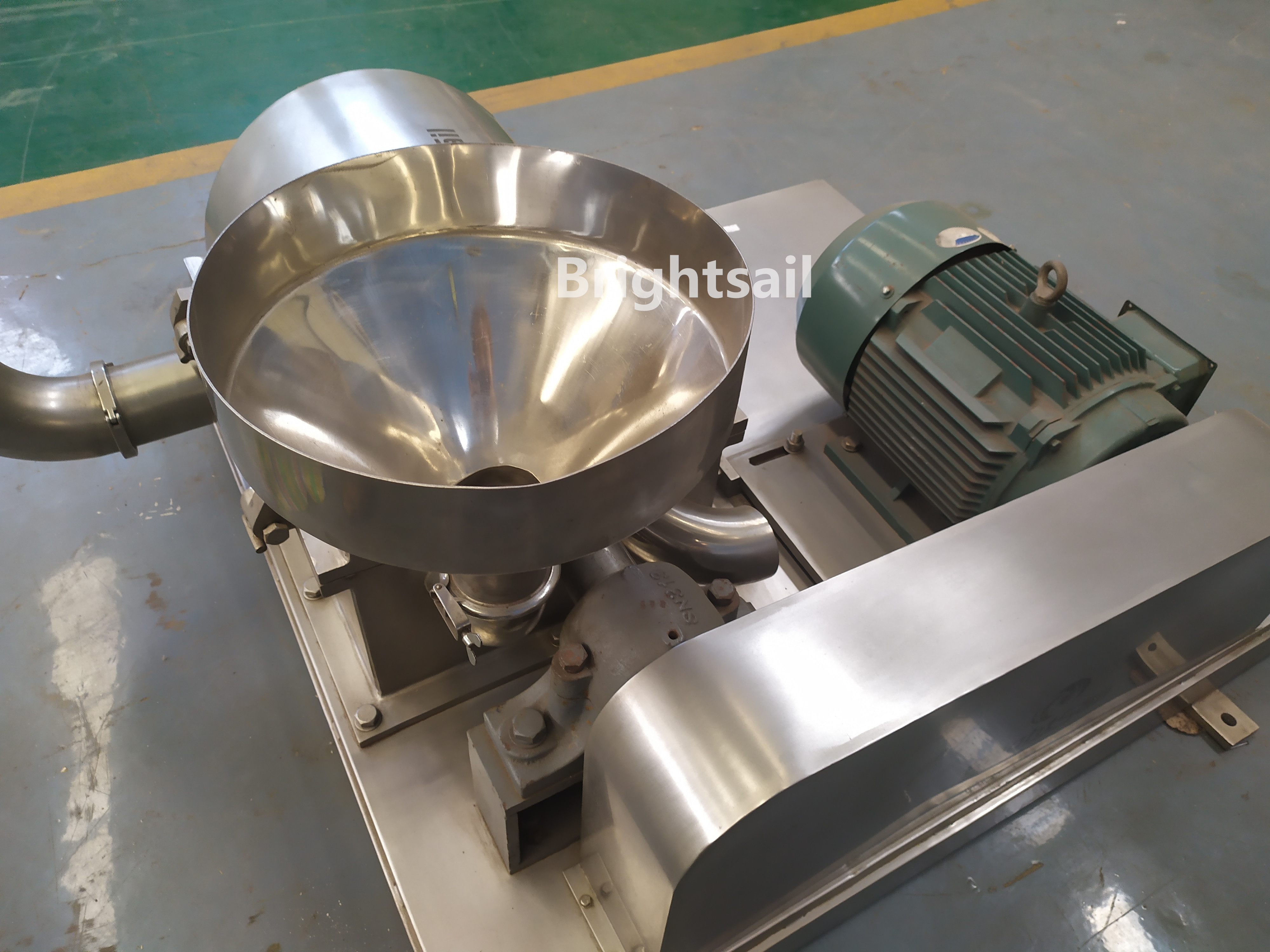

BSDF seaweed processing plant can crush all kinds of food powder
and granular raw materials. Steel plate welding structure is
adopted. The motor and hammer mill are installed on the same base.
Triangular tape is used for transmission. The rotor can do positive
and negative work after dynamic balance test. The feed hole is at
the top of the hammer mill. The hammer pieces are arranged
symmetrically. The machine has the advantages of reasonable
structure, durability, safety and reliability, convenient
installation, convenient operation, small vibration and high
grinding efficiency.
Working method:oyster shell crushing machine
The materials to be crushed are fed from the feeding port, sucked
into the coarse crushing area through the negative pressure of the
fan for coarse crushing, and the large particles after coarse
crushing enter the medium crushing area for secondary crushing.
After secondary crushing, the particles are separated from each
other by the grading wheel, and the particles meeting the
requirements of fine crushing enter the fine crushing area for
crushing. Large particles that do not meet the requirements of the
fine crushing area will remain in the medium crushing area for re
crushing. With the help of the fan wheel, the powdery powder in the
fine crushing area is discharged from the crushing chamber through
the negative pressure air flow of the fan through the discharge
port, and then enters the cyclone separator. The finished product
is discharged by itself through the electric rotary valve at the
bottom of the separator. The dusty gas enters the dust removal box,
the dust is blocked in the dust removal box by the cloth bag in the
dust removal box, and the clean gas is discharged from the fan
outlet.
Main features:oyster shell crushing machine
1) Mills don't need sieves or sieves! Change the size of the powder
by changing the speed.
2) Because there is no screen in the mill, there is no heat rise in
the mill.
3) If the power supply is stuck on the screen or the rolling mill
heats up and affects the product quality, don't worry. This is why
it is ideal for grinding heat sensitive materials or materials
containing fiber or oil.
4) The crusher part combines the coarse mill, medium mill and fine
mill to directly manufacture fine powder from large raw materials,
which is very effective.
5) Compared with the traditional rolling mill with similar motors,
it saves more power and has greater production capacity.
Technical data:oyster shell crushing machine
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
