Food Industry 50 To 5000kg Per Hr Large Capacity Chili Grinding
Machine
Product introduct:chili grinder

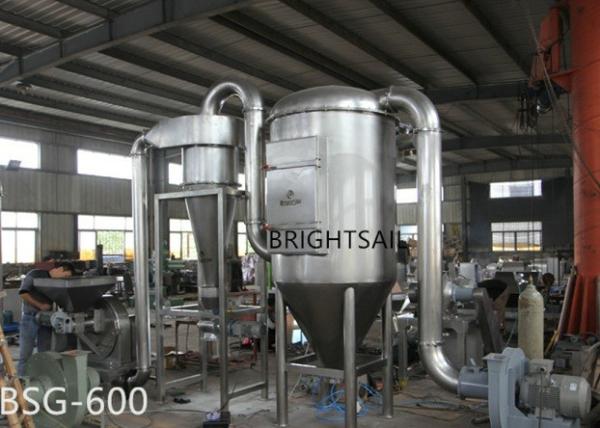

This chili machine is our company's BSG series self-priming
pulverizer, with a complete powder milling system (pulverizer, dust
collector, cyclone separator). This machine is widely used in food,
chemical and other industries. This machine is suitable for
grinding crystal materials, such as grinding 1-2 tons of powdered
sugar per hour. Suitable for grinding leaves, grains, chemical
powders, etc. The dust removal system is used to collect the dust
in the bag, which is more environmentally friendly to the industry.
Technical data:chili grinder
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:chili grinder
The product enters the grinding chamber through the hopper.In high
speed revolving pan mill/Under the hammer impact, the product
tosses into a fixed ring gear, then is bounced with cutting.At the
same time, in under the disc impact, cutting and the rubbing
effect, the material is fine.In the air blower and under the
impeller negative pressure function, the powder is absorbed in the
cyclone separator, discharges through the strainer and the
pipeline.The pulse dust remover also may collect some thin dust.
Main Features:chili grinder
(1) The grinding room is equipped with water cooling system to
effectively avoid damage to your product caused by excessive
temperature during grinding.
(2) With the unique impeller design, the air flow generated in the
grinding process will bring the final powder product out of the
grinding chamber together with hot air. No pieces / jam.
(3) The screen is made of high-quality stainless steel. Special
design. When you need a powder and another sieve, you can easily
change the sieve.
(4) Excellent cyclone powder discharge system, automatic rotation
of powder discharge motor and powder discharge device, uniform
powder discharge, stable powder discharge and no dust flying.
(5) The machine is also equipped with a dust removal system, which
is used to collect the fine powder inevitably generated in the
grinding process into the dust collector, so as to make the final
powder discharge of the automatic rotary powder discharge device
more uniform.
(6) All stainless steel structure, in line with GMP standards, food
grade, chemical grade and pharmaceutical grade standards.
(Split type) (Joint type)
Crusher part:chili grinder
Crushing Effect:
