12 To 120mesh Grinding Fineness SS316 Medicinal Herbs Grinding
Machine
Product introduct:Medicinal Herbs Grinding Machine
This machine is BSG series self-priming pulverizer of our company,
with complete pulverizing system (pulverizer, dust collector and
cyclone separator). The machine is widely used in food, chemical
and other industries. This machine is suitable for grinding crystal
materials, such as grinding 1-2 tons of sugar powder per hour. It
is suitable for grinding leaves, grains, chemical powders, etc. The
dust collection system is used to collect the dust in the cloth
bag, which is more environmentally friendly to the industry.
Technical data:Medicinal Herbs Grinding Machine
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:Medicinal Herbs Grinding Machine
The product passes through the hopper into the grinding chamber.
Under the impact of a high-speed rotating grinding disc/hammer, the
product is thrown into a fixed ring gear and then bounced and
sheared. At the same time, under the impact, cutting and friction
of the disc, the material is fine. Under the negative pressure of
the fan and the impeller, the powder is absorbed into the cyclone
separator and discharged through the screen mesh and pipes. The
pulse precipitator can also collect some fine dust.
Main Features:Medicinal Herbs Grinding Machine
(1) The grinding chamber is equipped with a water cooling system,
which can effectively avoid damage to your products due to
excessive temperature during the grinding process.
(2) Unique impeller design, the air flow generated during the
grinding process will bring the final powder product out of the
grinding chamber together with hot air. No blocks/jam.
(3) The screen is made of high-quality stainless steel. Special
design. When you need a powder and another sieve, you can easily
replace the sieve.
(4) Excellent cyclone powder discharge system, automatic rotating
powder discharge device of powder discharge motor, uniform powder
discharge, stable powder discharge, and no dust flying.
(5) This machine is also equipped with a dust removal system, which
is used to collect the fine powder inevitably produced during the
grinding process into the dust collector, so that the final powder
discharge of the automatic rotating powder discharge device is more
uniform.
(6) All stainless steel structure, in line with GMP standards, in
line with food-grade, chemical-grade, and pharmaceutical-grade
standards.
(Split type) (Joint type)

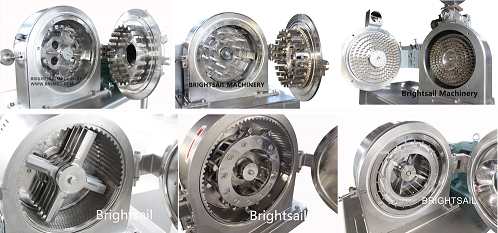

Crusher part:Medicinal Herbs Grinding Machine
