Pin Mill Machine With Two Grinding Discs Industrial Coffee Grinder
Machine
Product Introduction:
BSZ pin mill can be used in food, pharmaceutical, chemical and
other industries, mainly for pulverizing. For some materials with
high oil content, such as coffee beans and coriander seeds, this
type can also have a good grinding effect. In the process of fruit
powder production, liquid nitrogen needs to be equipped to control
the grinding chamber temperature to make the fruit powder output in
a good state. For eggshells, this needle mill is also applicable.
This product meets the food hygiene standard, easy to operate and
low noise. There are two types of two-way grinding wheel grinding
and one-way grinding wheel grinding.
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
Working method:
The machine adopts quantitative feeding mode to control the uniform
movement of materials in the grinding block. The negative pressure
traction method is adopted for unloading. The machine has no
screen, and the fineness of grinding materials is adjusted by the
speed of grinding wheel. It can also be graded by external grading.

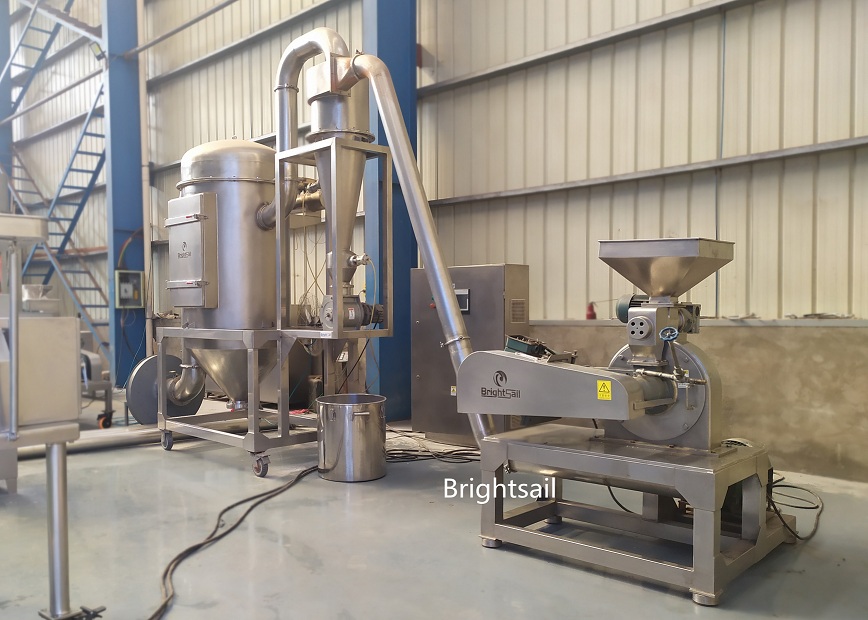

Main components:
1. Crusher: there are 2 grinding discs, which are fast and finer
than the powder grinded by ordinary pulverizer.
2. Cyclone part: it can separate the dust in the powder (particle).
3. Pulse dust collector: dust removal is carried out inside the
dust collector. There are many dust collection bags in the box, and
the bag rack is also made of stainless steel, which is easy to
disassemble. Using pulse jet cleaning, it is convenient to collect
dust.
Main features:
1) High rotary speed, up to 12000rpm
2) No need sieve or screen mesh in mill chamber, changing powder
size by changing rotary speed.
3) Very suitale for some materials with high oil content, such as
cocoa, coffee bean.
Packaging and transportation:
1. We provide transportation modes: express service, air
transportation and sea transportation
2. Can you accept the order: full container goods, less container
goods
3. Delivery method: EXW, FOB, CIF, CNF, etc.
We always choose the most economical and reliable shipping company
to ensure that you receive the goods in time. The bill of lading
and the bill of lading will be provided to you after shipment.
