Industrial Acm Grinder 20 To 1800kg Per Hr Capacity

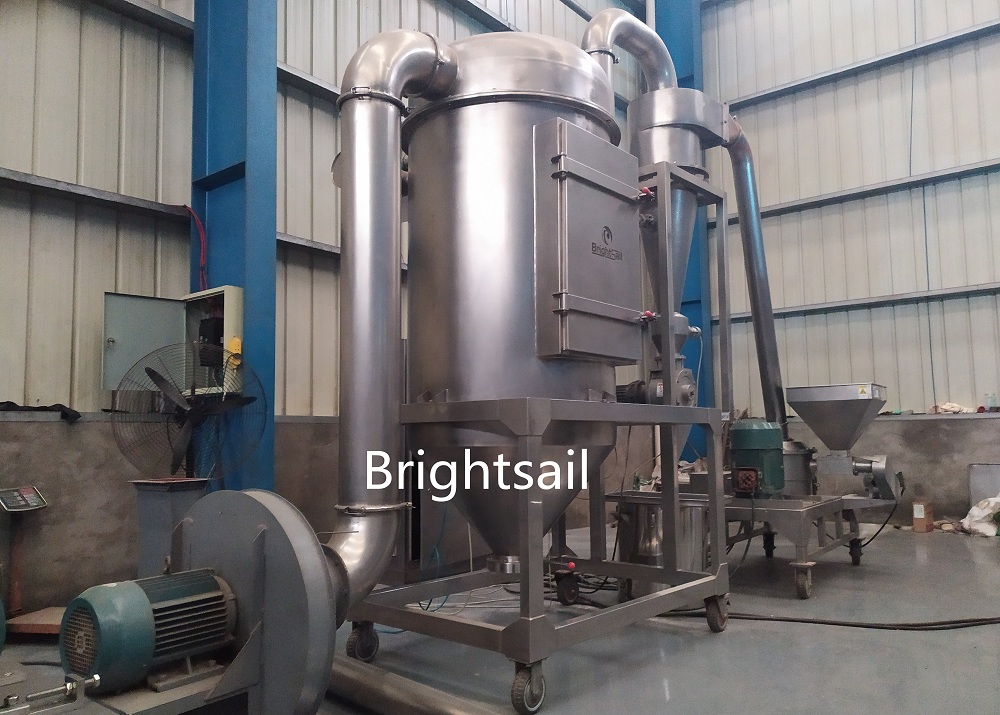

Industrial ACM Grinder 20 To 1800kg Per Hr Capacity Herbal Grinding Machine

BSP herbs grinder consists of main machine, auxiliary machine and electric control box. BSP grinder has the characteristics of wind force selection, no screen and no net, and uniform particle size of processed materials.

The production process is continuous and can undertake the grinding of chemical products. Food, medicine, cosmetics, plastics, dyes, resins, grains, etc.

Technical data:

Model	BSP-350	BSP-450	BSP-500	BSP-750
Input size(mm)	<15	<15	<15	<15
Fineness(mesh)	60-2500	60-2500	60-2500	60-2500
Capacity(kg/h)	20-200	40-500	60-800	120-1800
Crush motor(kw)	11	18.5	30	55
Grade motot(kw)	1.5	4	5.5	11
Blower(kw)	7.5	11	18.5	37
Feed motor(kw)	0.55	0.55	0.75	1.5
Discharge motor(kw)	0.75	0.75	1.1	1.5
Speed of principle axia(rpm)	-6500	-5350	-4600	-3100
Grading impeller speed(rpm)	4000	4000	3500	3000
Weight(kg)	1600	1800	2300	3100

Working method:

Through the high-speed rotation of the disc, under the action of centrifugal force, the material is crushed by the impact of the hammer installed on the disc, and then rotates to the surrounding ring gear at a very high speed. Due to the change of tooth surface, the change of air flow is instantaneous. The material is subjected to alternating stresses in the gap and is further completely crushed under this repeated action. The crushed materials enter the crushing classification chamber and are graded by the rotating classification wheel through the balance of aerodynamic force and centrifugal force. The separated coarse material returns to the crushing chamber from the bottom of the inner cavity of the shield and is repeatedly crushed. The fineness of the material (finished product) is sucked into the grading impeller and discharged from the discharge port.

Our Services:

1. Pre-sales service:

Inquiry and consulting support with 24 hours;

Machine sample test service;

Factory visit

2. After-sales service:

Instructing how to install and use the machine;

one year warranty;

video support;

engineer is available to go to user's factory to help install and train.
