Air Classifier Mill 2500 Mesh Powder Fineness Customize Herb
Grinder
It is suitable for grinding herbs, roots, leaves and low-oil spices
and other materials, such as rice, herbs, seaweed, etc. Fineness up
to 2500 mesh

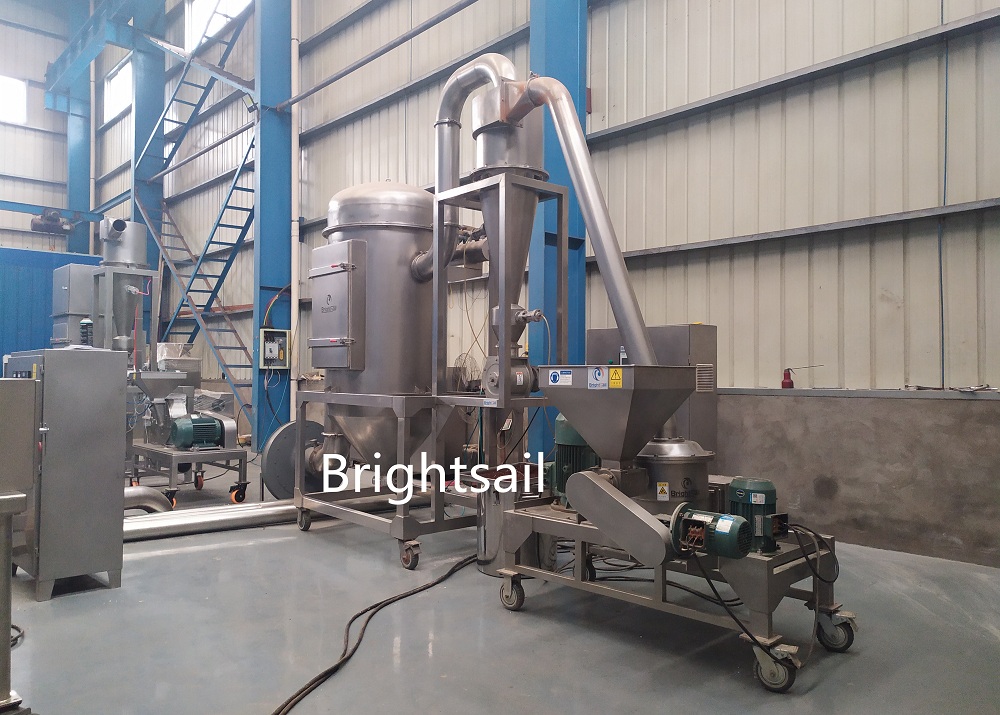

BSP powder machine is composed of crusher, cyclone separator, dust
collector, fan, electrical control box and other components.
It has the ability of screening, screening, uniform particle size,
and continuous processing.
It is suitable for industries such as medicine and chemical
industry, industrial raw material crushing, food industry and so
on.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working Method:
The raw material is fed into the grinding cavity by the screw
feeder through the hopper, and after being cut and sheared by the
high-speed cutting machine, it is fed into the cyclone separator
and the bag filter by the negative pressure suction method, and the
discharge meets the product requirements. This is why it can be
made into superfine powder and can be used as a fine powder machine
(fine powder machine).
Advantages:
1. Strong adaptability and narrow particle size distribution. The
particle size of the product is uniform, and the fineness can reach
80-320 mesh.
2. Adjust the speed or air volume of the classifier without
shutdown to obtain the products with uniform particle size
distribution.
3. The upper cover of the main engine is opened by pneumatic
spring, and the structure of the engine body can be opened to both
sides, so that there will be no obstacles when cleaning and
repairing internal parts.
4. The main grinding parts are made of high-grade alloy tool steel,
which greatly prolongs the service life or replacement cycle of
wear parts.
5. The bearing system adopts high-speed precision bearings imported
from abroad, with stable operation, low vibration and noise.
6. It adopts a rapid pipe removal structure, which is convenient
and fast for pipe removal and cleaning.
