Processing Customized 2800 Mesh Powder Making Grinding Machine For
Herbs
BSP industrial herb grinder is composed of crusher, cyclone
separator, dust collector, blower, electric control box, etc. It
has the functions of dust selection, no screen, no net, uniform
particle size, continuous processing and so on. In line with the
international advanced level, it is suitable for material crushing
in pharmaceutical, chemical, food and other industries.
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working Method:
The raw materials are sent to the crushing chamber by the Spiral
Feeder through the hopper, the high-speed cutting machine after
shearing and pruning. The raw materials are sent to the cyclone
separator and the bag filter by the negative pressure suction
method, and the discharge meets the product requirements. This is
why BSP ultrafine powder grinding machine can produce ultrafine
powder, can be used as a fine grinding machine.
Main Components:
1. Pulse Dust remover: collect dust into the dust remover. A
plurality of dust bags are arranged in the box, and the dust bag
seat is also made of stainless steel, which is convenient for
disassembly. Pulse spray cleaning, dust removal is very convenient.

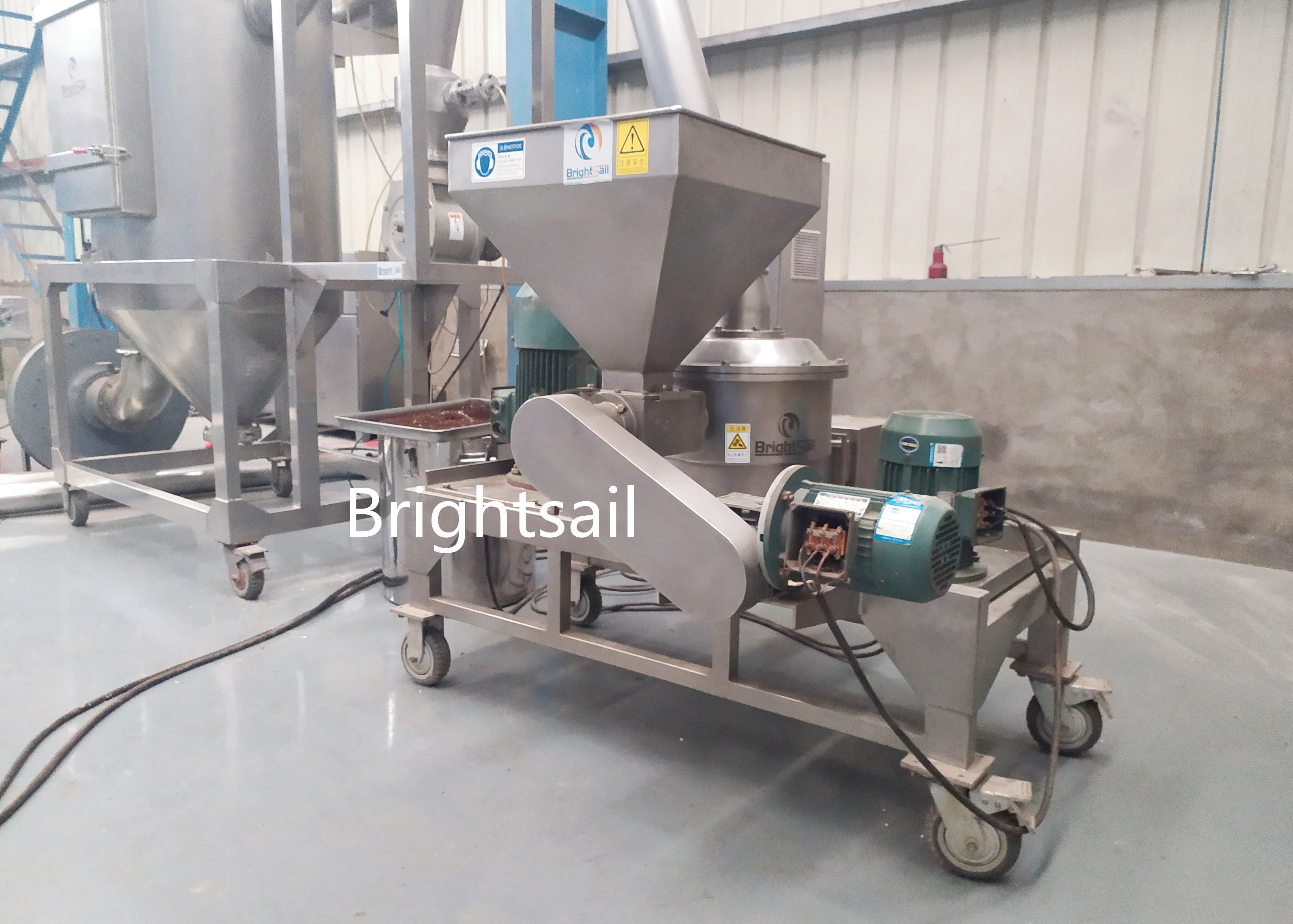

2. Crusher part: Left Motor for the crusher motor, right motor for
electromechanical. Small spiral feeder is used to ensure uniform
and controllable feeding speed.
3. Materials enter the grinding chamber through a screw conveyor,
where they are cut and ground by rapidly rotating blades. The
powder passes through the guide ring into the classification
chamber.
4. Cyclone separator: Cyclone separator can separate dust and
powder (particles) . The Rotary Valve is made of stainless steel
with uniform powder speed. Easy to clean and disassemble.
Main Features:
1. Simple structure, easy installation and maintenance.
2. There is a water-cooling sleeve around the grinding chamber, and
the bearing can cool the machine.
3. Motors, electrical appliances, bearings and operating parts all
adopt world advanced brands.
4. There is no dust in the production process, and the dust can be
collected in the dust removal box.
5. Without changing the screening speed,
6. Particle size can be changed
Why us:
Over the years, we have exported machines to more than 30
countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan,
Qatar, Nigeria and many other countries.
So you don't need to worry about the export formalities, because we
know all the formalities.
FAQ:
1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the
container, we will split the machine into several parts, then wrap
the machine with wrapping film, and then fix it in the container
with wire rope to prevent them from shaking during transportation.
