Spice Grinder 60 To 2500 Mesh Superfine Powder Making Turmeric
Powder Grinding Machine
Product Introduction:
BSP Turmeric Pulverizer is an advanced pulverizer with the
advantages of stable technical performance, low noise, low
consumption, high efficiency, adjustable fineness and low
temperature rise. It is very suitable for sugar, food powder,

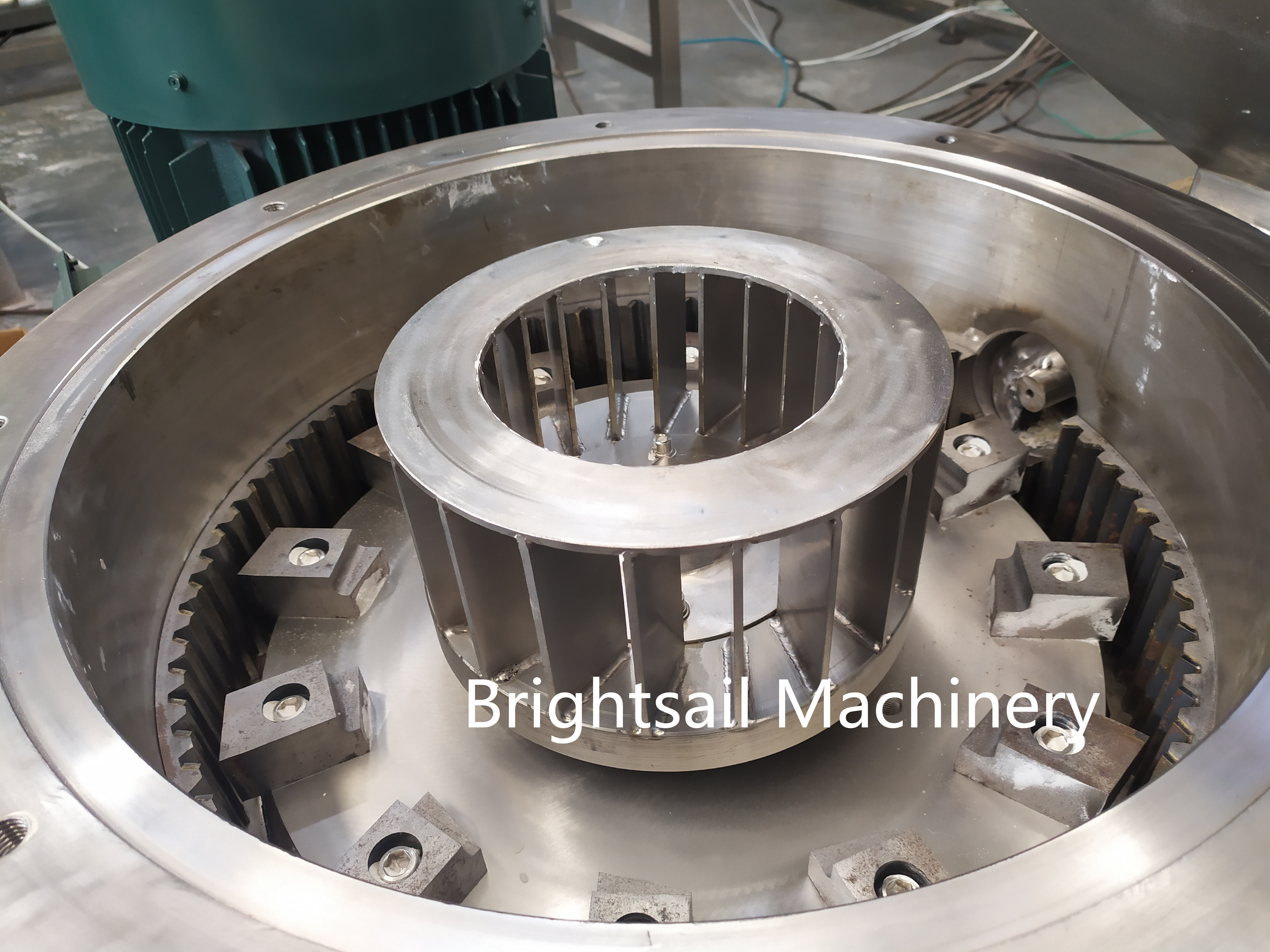

herbs, spices and so on. The unit is composed of crusher part,
powder collecting device, conveying pipe, electric control cabinet
and so on. The crusher part is equipped with air grading equipment,
which can adjust the product granularity arbitrarily to prevent
excessive crushing. The crushed powder is conveyed to the cyclone
by negative pressure and discharged by the discharge valve.
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Main features:
1. Very fine powder manufacturing. In the food industry, raw
materials can be ground to more than 300 mesh (such as rice and
turmeric); In the chemical industry, materials can be ground to
more than 1000 mesh. (e.g. talc)
2. When the crushing chamber works, the powder size can be changed
by frequency conversion speed regulation without screen or screen.
3. There is no dust in the production process, and the dust can be
collected in the dust collection box.
FAQ:
1. Q:How do you pack your machines?
A:If it's a small machine, it's packed in wooden cases.If it is a
large machine or many machines, we will take the container, we will
split the machine into several parts, then wrap the machine with
wrapping film, and then fix it in the container with wire rope to
prevent them from shaking during transportation.
2. Q:What's your modes of shippment?
A:(1)We provide shipping methods:Courier service,Air transport,Sea
Transport;
(2)Can accept order:Full container cargo load,Less container load;
(3)Delivery term :EXW,FOB,CIF,CNF etc.
