Food Processing Industry 300 To 800 Kg Per Hr Capacity Chili
Roasting Machine
Product Introduction:
The machine mainly use to produce puffed rice, corn,roast nuts,
grains and drying the granular materials.
High degree of automation,Intelligent,Environmental protection.The
whole machine is made of stainless steel to ensure sanitation and
safety of roasted products, accord with GMP standard. Humanized
design, intelligent control, convenient and quick parameter. The
highest temperature can reach 400℃. It has self-diagnosis
function,the faults code will be shown on the display screen.The
heating temperature should be over 215 ℃, put the rice into
roasting machine, 5 seconds out from the roaster.You will got
puffed rice.
BSCL 7-60 roasting machine line:
| Model | BSCL 7-60 | Elevator | Vibrating screen | Cooling machine |
| Capacity | 300-500 KG/H | 300-500 KG/H | 300-500 KG/H | 300-500 KG/H |
| Heat power | 155-120 kw | / | / | / |
| Motor power | 3 kw | 400w+20w | 0.37kw+0.37kw | 0.4kw+0.12kw*4 |
| Overall size | 6500x1010x1600mm | 1750*970*2150mm | 1450*800*1510mm | 6100*700*560mm |
| Roller size | 700*6000 mm | / | / | / |
| Voltage | 380V/50HZ | 220V | 220V/380V | 220V |
BSCL 7-80 roasting machine line:
| Model | BSCL 7-80 | Elevator | Vibrating screen | Cooling machine |
| Capacity | 500-800 KG/H | 500-800 KG/H | 500-800 KG/H | 500-800 KG/H |
| Heat power | 20-180 kw | / | / | / |
| Motor power | 3 kw | 400w+20w | 0.37kw+0.37kw | 0.4kw+0.12kw*4 |
| Overall size | 8500x1010x1600mm | 1750*970*2150mm | 1450*800*1510mm | 6100*700*560mm |
| Roller size | 700*8000 mm | / | / | / |
| Voltage | 380V/50HZ | 220V | 220V/380V | 220V |
Main Features:
1.Protect environment: electromagnetism transform into heat energy
to process the materials, carbon-free and environment-friendly
2.Save energy & low power consumption:roasting machine use the
roller with the composite materials to decrease the energy lost.
Heat efficiency95%, save 45% electricity.
3.Save electricity and time: the electromagnetism heating system
make the roller heat by itself, without heat medium.Work 30seconds,
the temperature can be 100 degree centigrade.
4.Save electricity and time: the electromagnetism heating system
make the roller heat by itself, without heat medium.Work 30seconds,
the temperature can be 100 degree centigrade.
5.Human interface: humanization design, intelligent control. Easy
to set up the parameter.
Working Method:
The electromagnetic heating system: the electromagnetic control box
make the copper wire plate generate the magnetic field, when the
roller rotating will cut the magnetic induction line and generate
wave to influence the metal roller, and make the metal roller
self-heating.
The copper wire plate under the roller, the wire plate is cold,
will not be hot when the equipment working, just generate the
magnetic field. The metal roller self-heating.

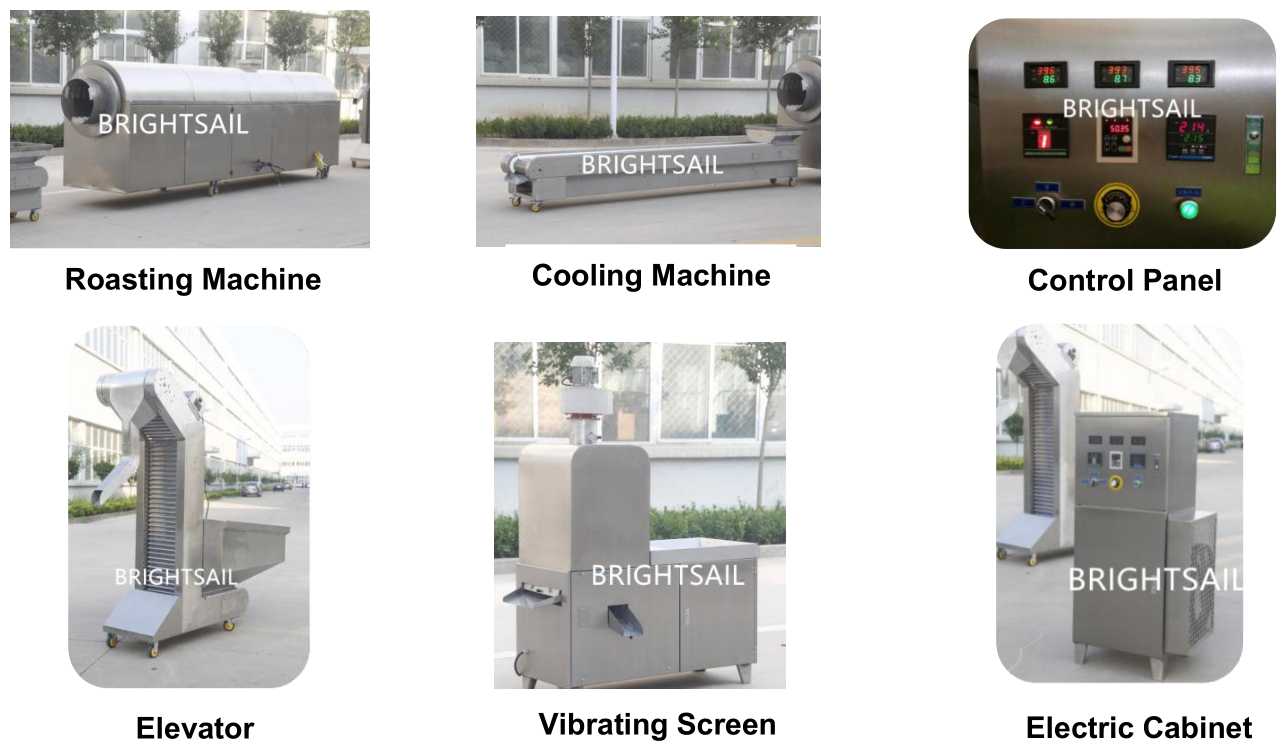

Detailed Image:
