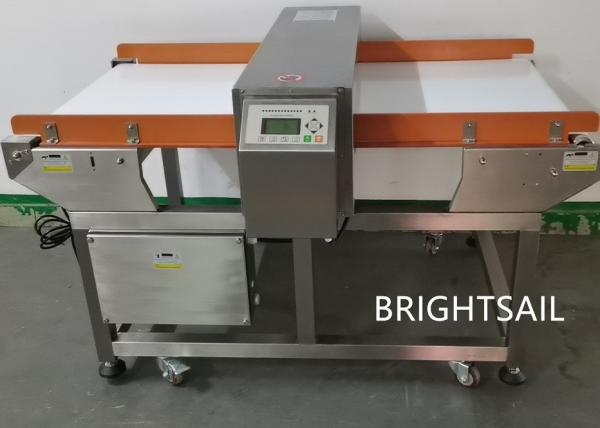

Fully Automatic Foodstuff Industry Belt Type Metal Detector Machine
Technical Data:
| Model | XR-980 |
| Type | standard machine | Non-standard machine (special specification) |
| Detection channel width(mm) | 400 | Non-standard machine (special specification) |
| Detecting channel height(mm)(≤200) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Calibration detection sensitivity | Iron ball diameter(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Diameter of non-ferrous metals such as copper and aluminum(Φmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 |
| 304 stainless steel ball diameter(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 | ≥3.5 | ≥4.0 | ≥4.5 |
| Type of alarm | Detect metal foreign matter automatically stop running, buzzer
alarm or remove |
| Material | The whole frame is made of 304 mirror stainless steel |
| Size(mm) | 1330×750×1100(L×W×H) |
| Weight | About 180KG |
| Note: the above sensitivity parameters are the test results of the
air machine without environmental interference,the actual
application will be slightly different due to the interference of
the use environment and the components of the detected object! |
Functions And Features:
1. Close technical cooperation with Mettler Toledo, the world's
leading weighing and metal detection technology company.
2. The core part adopts advanced digital technology and original
imported chips for careful research and development. The interior
of the detection coil is formed by one-time potting. It has the
characteristics of high detection accuracy, stable performance and
strong anti-interference ability.
3. It can carry out multi frequency production according to product
characteristics, has the function of product test data storage, can
store more than 100 product test data, and has a wide range of
applications.
4. Intelligent identification technology is adopted, which has the
function of self-learning and memory, can automatically identify
and remember the characteristics of products, and effectively
eliminate the interference caused by various "product effects".
5. The operation interface is simple and friendly. The dialogue LCD
screen is adopted, and the parameters can be set quickly and
conveniently through the simple key control interface; It can
detect a variety of products with different product signals
(characteristics). Once set, it can ensure high detection accuracy
without readjusting and setting procedures.
6. Meet the requirements of ISO, OHSAS and CE.
7. Shockproof and waterproof design, dustproof and waterproof
function, in line with international certification, anti vibration
and noise absorption, and can adapt to harsh working environment.
8. Various material retaining devices (such as flaps, blowers, push
rods, etc.) and special load-bearing body design of lightweight and
large packaging can be adopted according to the needs of users.
Application:
This machine is mainly used to detect the metal impurities and
metal foreign matters of food, bread, steamed bread, dumplings,
biscuits and other products, as well as the inclusion of metal
impurities in the production process of products or raw materials
in medicine, toys, clothing, footwear, chemical industry, leather,
knitting and other industries. For example, iron and non
ferromagnetic metal items (iron, copper, aluminum, stainless steel
and other non-ferrous metals can be detected) can improve the
product safety factor and product quality.
