Air classifier Mill 60 To 2500mesh Fenugreek Seed Grinding Machine
BSP series superfine powder machine is one of our company's most
popular products. Our customers usually use it to make powdered
sugar, salt powder, flour, spice powder, medicine powder...This
fenugreek seed grinder has a wide range of uses. Food, chemical,
pharmaceutical and other industries need to manufacture fine
powders. This grinder mill is appropriate.

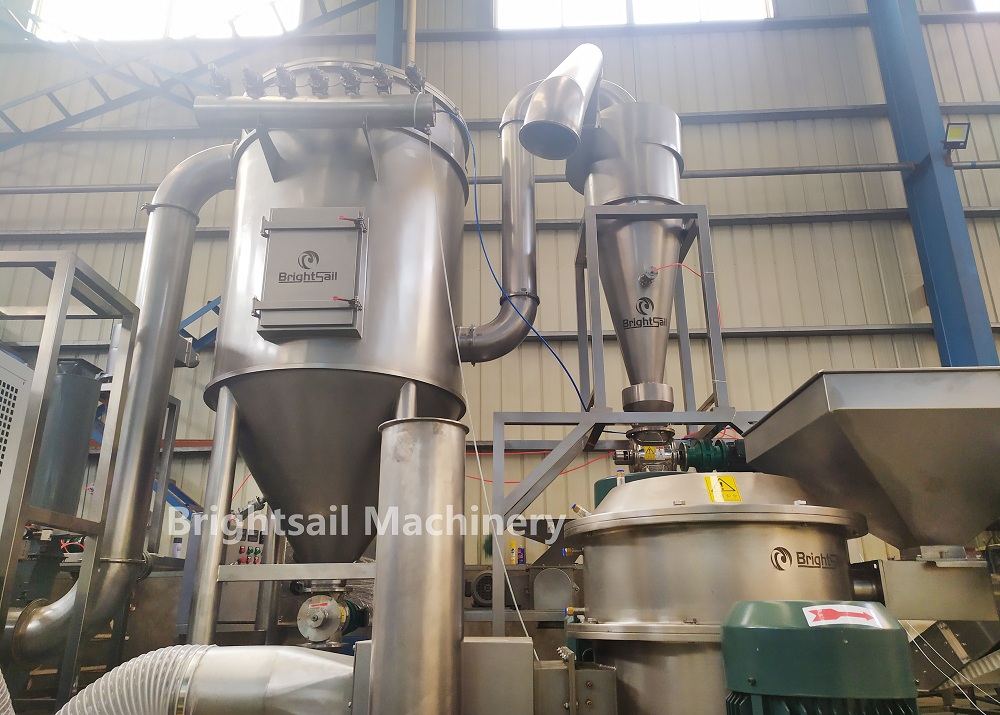

This air classifier mill is composed of three parts: Main Machine,
auxiliary machine and electronic control box. A BSP grinder has the
characteristics of air selection, no screen, no net and uniform
particle size of processed materials. Continuous production
process, can undertake the grinding of chemical products. Food,
medicine, cosmetics, plastics, dyes, resins, grains, etc.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working Principle:
The material enters the crushing chamber from the hopper through
the screw conveyor, and is sheared and crushed by the high-speed
rotating blade. The material is transported into the cyclone
separator and the bag filter by the method of negative pressure air
transportation, and the discharged material meets the requirements
of the product.
Advantages:
1. Compact design and reasonable structure. There is a grading
mechanism inside the material, which can crush and grade at the
same time to reduce energy consumption.
2. It is equipped with a fan for continuous heat dissipation, which
is suitable for the grinding of heat sensitive materials.
3. Strong adaptability and narrow particle size distribution. The
particle size of the product is uniform, and the fineness can reach
80-320 mesh.
4. Adjust the speed or air volume of the classifier without
shutdown to obtain products with uniform distribution and meeting
the required particle size.
5. The top cover of the main engine is opened by pneumatic spring,
and the structure of the main engine shall be able to open to both
sides, so that there will be no obstacles when cleaning and
repairing internal parts.
6. The main abrasive parts are made of high-grade alloy tool steel,
which greatly prolongs the service life or replacement cycle of
worn parts.
7. The bearing system adopts imported high-speed precision
bearings, with stable operation and low vibration and noise.
8. The pipeline adopts quick disassembly structure, which is fast
and convenient for disassembly and cleaning.
9. Equipped with cyclone separator and collector, there is no
flying powder in the production process. The dust removal cloth bag
can effectively collect the fine powder in the air flow and meet
the clean and environmental protection requirements of waste gas
emission.
10. The fine powder collected by the dust bag can be effectively
recovered. So as to reduce material loss.
