Food Industry Free Fall Vertical Metal Detector For Powder And
Granules

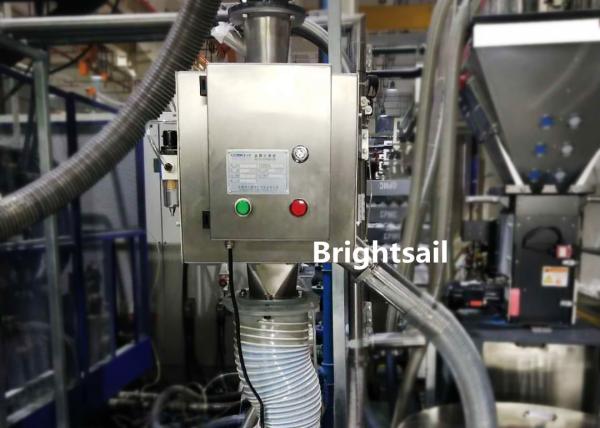

BSXR series metal separator / free falling metal detector can
remove or separate metal particles that may exist in plastic
particles (such as ferrous iron, aluminum, brass, copper, stainless
steel, etc.) (even if the metal particles are encapsulated in the
product). The metal separator can prevent metal from entering the
injection molding machine and reduce the damage to the mold, hot
nozzle and valve.
Technical Data:
| Model | Feed diameter | Accuracy | Compressed air | Max capacity(L/h) | Raw material temperature | Unqualified material discharge time |
| (Фmm) | FeΦ | SUSΦ | Other Metal | | | | |
| BSXR-3500-50B | 50 | 0.3mm | 0.6mm | 0.3~0.6 mm | 3～5Bar | 2000 | < 80℃ | 0.3～5s |
| BSXR-3500-70B | 70 | 0.7mm | 1.0mm | 0.7~1.0 mm | 3～5Bar | 5000 | < 80℃ | 0.3～5s |
| BSXR-3500-100B | 100 | 0.8mm | 1.2mm | 0.8~1.2 mm | 3～5Bar | 12000 | < 80℃ | 0.3～5s |
| BSXR-3500-120B | 120 | 1.2mm | 1.5mm | 1.2~1.5 mm | 3～5Bar | 16000 | < 80℃ | 0.3～5s |
| BSXR-3500-150B | 150 | 1.5mm | 2.0mm | 1.5~2.0 mm | 3～5Bar | 25000 | < 80℃ | 0.3～5s |
| BSXR-3500-200B | 200 | 1.8mm | 2.2mm | 1.8~~2.2 mm | 3～5Bar | 44000 | < 80℃ | 0.3～5s |
| BSXR-3500-250B | 250 | 2.5mm | 3.8mm | 2.5~~3.8 mm | 3～5Bar | 50000 | < 80℃ | 0.3～5s |
Features:
1. Integrate detection coil, controller and separation device.
Simple operation and convenient installation.
2. It can save the loss of materials, because the rejection board
quickly rejects unqualified materials.
3. Low installation height, easy for integrity;
4. Testing material performance: dry, good fluidity, not long
fiber, non-conductive;
5. Testing material temperature: less than 80℃; if it exceeds 80℃,
special components can be selected.
6. The controller can be installed about 10m away from the
inspection site.
7. Mainly used for the detection of (8mm) loose granular materials.
These materials fall into the detection coil under the action of
gravity.
8. This machine is suitable for plastic, food, chemical and other
industries.
Advantages:
1. The shell material is made of SUS304 and the parts that are in
direct contact with the product.
2. High sensitivity to all metals; effective shock and sound
insulation, special structure design;
3. A variety of calibers can be selected to meet various practical
applications.
4. Avoid moldy due to product backlog and blockage.
5. Simple operation, space saving, and compact design ensures quick
installation.
6. The patented metal separator can ensure safety even when
processing a large amount of grinding materials (dust) and can be
operated repeatedly.
