Stainless Steel Customized Falling Type Metal Detector For Food
Industry
BSXR Series Metal Separators/Free Fall Metal Detectors remove or
separate metal particles that may be present in plastic particles
(e.g. ferrous, aluminum, brass, copper, stainless steel, etc.)
(even if metal particles are encapsulated in the product). Metal
separators prevent metal from entering the injection molding
machine, reducing damage to molds, thermal nozzles and valves.
Technical Data:
| Model | Feed diameter | Accuracy | Compressed air | Max capacity(L/h) | Raw material temperature | Unqualified material discharge time |
| (Фmm) | FeΦ | SUSΦ | Other Metal | | | | |
| BSXR-3500-50B | 50 | 0.3mm | 0.6mm | 0.3~0.6 mm | 3～5Bar | 2000 | < 80℃ | 0.3～5s |
| BSXR-3500-70B | 70 | 0.7mm | 1.0mm | 0.7~1.0 mm | 3～5Bar | 5000 | < 80℃ | 0.3～5s |
| BSXR-3500-100B | 100 | 0.8mm | 1.2mm | 0.8~1.2 mm | 3～5Bar | 12000 | < 80℃ | 0.3～5s |
| BSXR-3500-120B | 120 | 1.2mm | 1.5mm | 1.2~1.5 mm | 3～5Bar | 16000 | < 80℃ | 0.3～5s |
| BSXR-3500-150B | 150 | 1.5mm | 2.0mm | 1.5~2.0 mm | 3～5Bar | 25000 | < 80℃ | 0.3～5s |
| BSXR-3500-200B | 200 | 1.8mm | 2.2mm | 1.8~~2.2 mm | 3～5Bar | 44000 | < 80℃ | 0.3～5s |
| BSXR-3500-250B | 250 | 2.5mm | 3.8mm | 2.5~~3.8 mm | 3～5Bar | 50000 | < 80℃ | 0.3～5s |
Features:

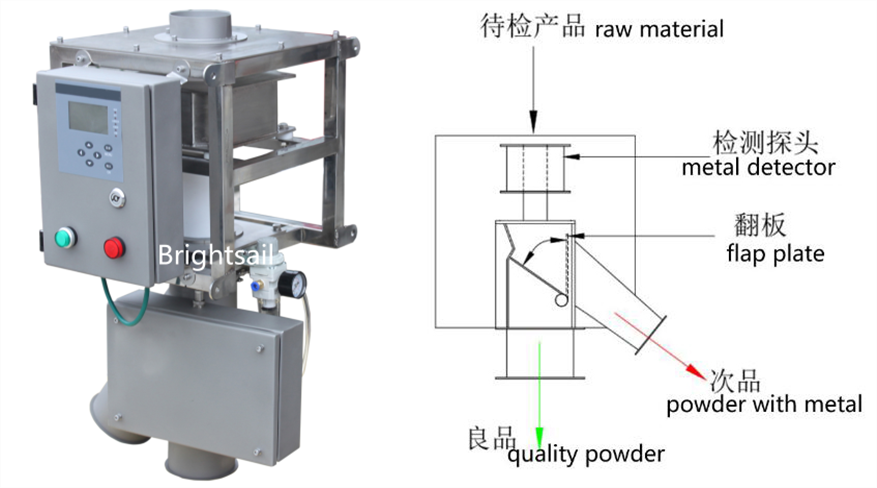

1. Set detection coil, controller, separation device in one. Simple
operation and easy installation.
2. It can save on the loss of materials because the reject plate
quickly rejects unqualified materials.
3. Low installation height, easy to integrity;
4. Test material properties: dry, good fluidity, no long fiber, no
conductivity;
5. Test material temperature: ≤80 °C; If it exceeds 80, special
components can be selected.
6. The controller can be installed at a distance of about 10 meters
from the inspection point.
7. Mainly used for the detection of (8mm) loose granular materials.
These materials fall into the detection coil under gravity.
8. This machine is suitable for plastics, food, chemical and other
industries.
Advantages:
1. The housing material is SUS304 and the parts in direct contact
with the product.
2. High sensitivity to all metals; Effective vibration and sound
insulation, special structural design;
3. A variety of calibers can be selected to meet various practical
applications.
4. Avoid mold due to product backlog and blockage.
5. Simple operation, space saving, compact structure, quick
installation.
6. Patented metal separator, even if you handle a large number of
abrasive materials (dust) can ensure safety, repeatable operation.
Please contact us if you have interests in our products.
