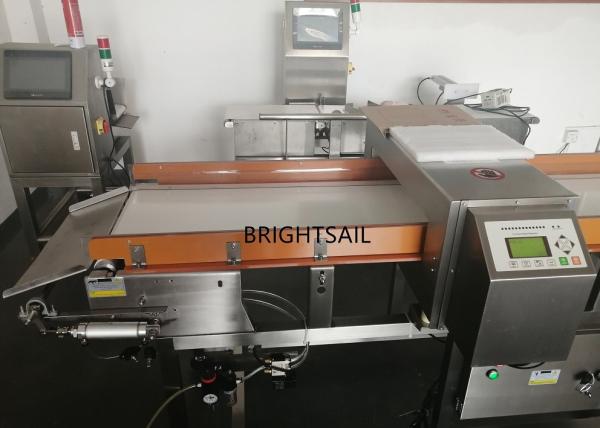

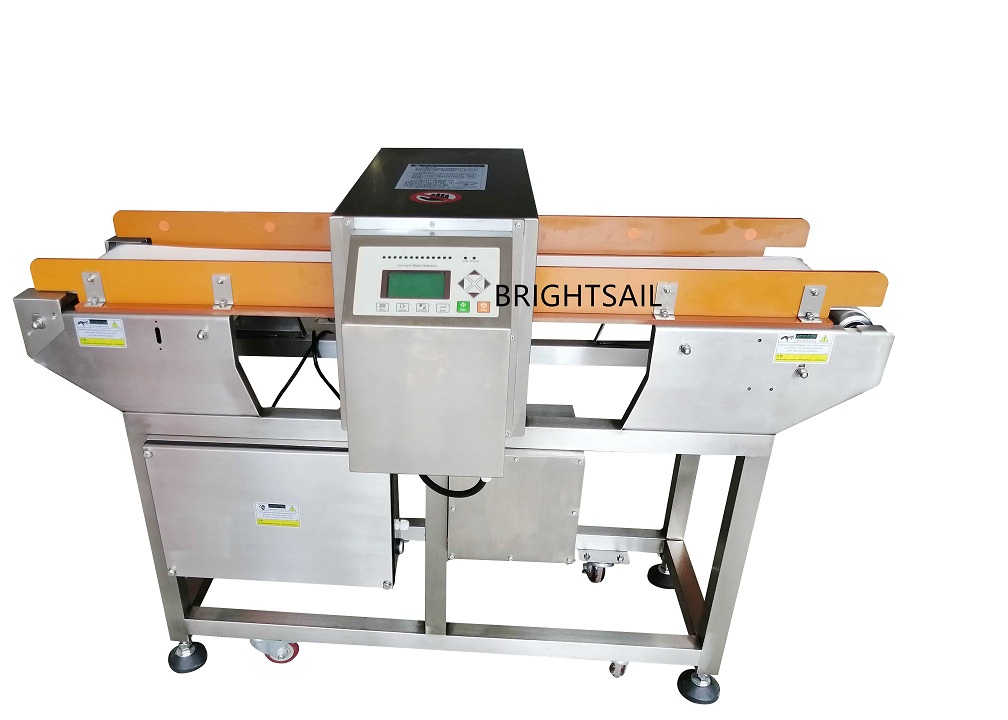

Food Industry Got CE Stainless Steel Conveyor Belt Metal Detector
This type of metal detector is mainly used to detect metal
impurities and metal foreign bodies in food, bread, buns, steamed
bread, dumplings, biscuits and other products, as well as drugs,
toys, clothing, footwear, chemical, leather, knitting and other
industries.
Technical Data:
| Model | XR-980 |
| Type | standard machine | Non-standard machine (special specification) |
| Detection channel width(mm) | 400 | Non-standard machine (special specification) |
| Detecting channel height(mm)(≤200) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Calibration detection sensitivity | Iron ball diameter(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Diameter of non-ferrous metals such as copper and aluminum(Φmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 |
| 304 stainless steel ball diameter(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 | ≥3.5 | ≥4.0 | ≥4.5 |
| Type of alarm | Detect metal foreign matter automatically stop running, buzzer
alarm or remove |
| Material | The whole frame is made of 304 mirror stainless steel |
| Size(mm) | 1330×750×1100(L×W×H) |
| Weight | About 180KG |
| Note: the above sensitivity parameters are the test results of the
air machine without environmental interference,the actual
application will be slightly different due to the interference of
the use environment and the components of the detected object! |
Advantages:
1. It has the characteristics of high detection accuracy, stable
performance, and strong anti-interference ability.
2. It can be produced with multiple frequencies according to
product characteristics, can store more than 100 product testing
data, and has a wide range of applications.
3. Simple and friendly operation interface, parameters can be set
quickly and conveniently through the simple key control interface;
4. Modular component replacement, convenient and quick maintenance.
5. Shockproof and waterproof design, anti-vibration and noise
absorption, can adapt to harsh working environment.
6. Various reject devices can be added according to user needs.
Packing And Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea
Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company
to make sure you receive the goods in time. The BL and tracking
number will be provided to you once the consignment is shipped.
Please contact us if you have interests in our products.
