Stainless Steel Customized Horizontal Ribbon Mixer 60-12000l Large Capacity

Ask Lasest Price
Brand Name :	Brightsail
Model Number :	BSR
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	10 sets per month
Delivery Time :	30-35 days

Add to Cart

Product Details
Company Profile

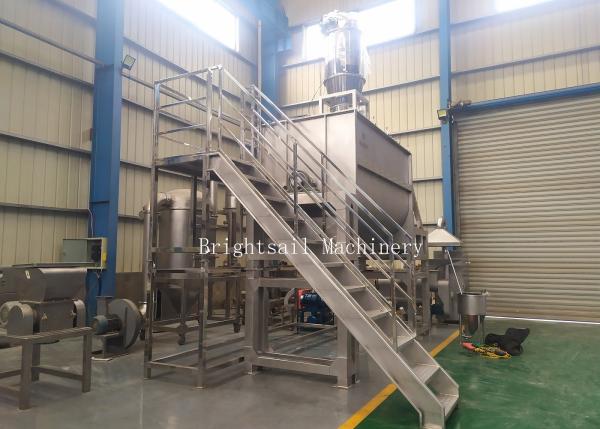

Stainless Steel Customized Horizontal Ribbon Mixer 60-12000l Large Capacity

Stainless Steel Cuatomized 60 To 12000L Large Capacity Horizontal Mixer

Product Description:

A horizontal belt mixer consists of a u-shaped cylinder, a driving part and a belt-type agitating blade. The belt-type agitating blades are usually double or three layers. The outer screw gathers the materials laterally to the center, and the inner screw transports the materials from the center to the two sides, convective mixing is formed.

Technical data:whey protein powder ribbon blender

Model	Max work volume(L)	Speed(rpm)	Motor(kw)	Overall size(LWH)(mm)	Weight(kg)
BSR-100	60L	62	3	1080758615	330
BSR-300	180L	49	5.5	15508121015	780
BSR-500	300L	46	7.5	197510591120	955
BSR-1000	600L	35	11	234013801455	1400
BSR-2000	1200L	33	15	248016511805	2500
BSR-3000	1800L	33	18.5	294518961980	3300
BSR-4000	2400L	29	22	303819462205	3600
BSR-5000	3000L	29	30	393220102035	4320
BSR-6000	3600L	26	37	393818822246	5300
BSR-8000	4800L	26	45	398621602516	6800
BSR-10000	6000L	19	55	450022702667	8900
BSR-15000	9000L	17	75	536324703020	9950
BSR-20000	12000L	17	90	567026503497	11140

Working Method:
The patented technology of the utility model drives the materials in the barrel to rotate through the inner diameter and outer diameter screws installed on the mixing shaft, so that the mixer can rotate the animals in the barrel to the greatest extent. In the agitator structure, the screw is designed as inner and outer reverse helix and left to right reverse helix. When the agitator works, the inner screw carries animal materials and rotates near the shaft to push both sides of the shaft. The axial rotation generates the axial thrust on both sides to make the materials convection, shear and mix in the pipeline, so that the materials can be mixed quickly and evenly in a short time.

Main Features:

1. The horizontal u-shaped structure is simple and easy to install and maintain.
2. Pneumatic components, motors, electrical components, bearings, operating components are using world-famous brand of advanced components.
3. The two sides of the belt mixer are sealed.
4. The bunker has a safety net.
5. Pneumatic valve for discharging.

How Can I Buy This Machine?
First of all, discuss all machines details and price with our sales person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.

Please contact us if you have interests in our products.
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
