Industrial 750 To 1750 Capacity Fruit And Vegetable Bubble Washing
Machine
Why Choose Us:
Within years, we have exported machine to over 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan,
Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we
know all the procedures.
Company information:
Brightsail Machinery has found nearly 15 years, who designs and
manufactures overall powder processing solutions for the Chemical,
Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries,
like powder grinding machines, mixing machines, drying
machines...etc.
Brightsail is constantly committed to develop new advanced
techniques and methods on the machines, since our goal is to be
your trusted provider of creative and value added process
solutions.
Product Description:

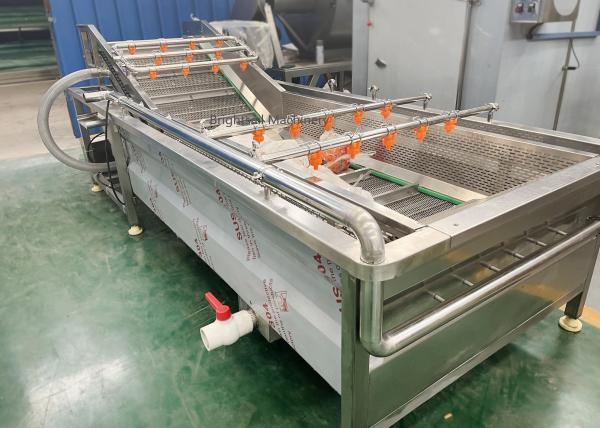

Our BSQP vegetable and fruit bubble washing machine is mainly used
for cleaning toona sinensis,vegetables,fruits,fungi,and many kinds
of packaging.
| Models | BSQP-3500 | BSQP-4000 | BSQP-5000 |
| Size(mm) | 3500*1400*1350 | 4000*1600*1350 | 5000*1600*1350 |
| Power(kw) | 4.07 | 4.87 | 5.25 |
| Mesh Belt's Width(mm) | 600 | 800 | 800 |
| Weight(kg) | 360 | 500 | 700 |
| Capacity(kg/h) | 750 | 1250 | 1750 |
| Speed | Frequency Control |
Working Principle:
The principle of the bubble cleaning machine is mainly to inject
proper amount of water in front of the equipment box body.
high-pressure bubbles in the box body will produce a large number
of dense bubbles, so that the product can be scrubbed along with it
through the box body, the utility model relates to a combined type
article, which is in a rolling state under the action of a bubbling
machine and water, and continuously moves forward with the net
belt. When water comes out, the high end is provided with a nozzle
and is cleaned under high pressure. Then into the lower part of the
water division, packaging for secondary cleaning and cooling, with
Mesh Belt to push forward on the surface, high-end with a spray
head for high-pressure washing.
Advantages:
1. This washing machine is made of 304 grade stainless steel.
2. It is multifunctional for washing and cleaning without damaging
materials.
3. Equipped with bubble generator to ensure the best washing
effect.
4. The machine is equipped with ozone (selection function) and
bubble generator to fill the water with bubbles and ozone and
achieve deep cleaning effect in the washing process.
5. It has automatic purification function and can be reused after
water purification.
6. The conveying speed can be adjusted according to the washing
materials and your requirements.
7. The washing capacity can be customized from 100 kg to 50 kg.
Features:
This machine adopts SUS304 stainless steel chain plate Mesh Belt
Transmission, Mesh Belt strength is high, retractable small, not
easy deformation, easy maintenance and other characteristics, the
whole machine running balance, low noise, greatly improve the work
efficiency. When discharging, the material is conveyed directly
from the equipment with the rise and fall of the net belt. The
transmission reducer is controlled by frequency conversion. The
speed of net belt can be adjusted freely and the operation is
stable.
