horizontal industrial food chemical blending machine pharmaceutical
Ribbon powder mixer mixing machine
Product description:

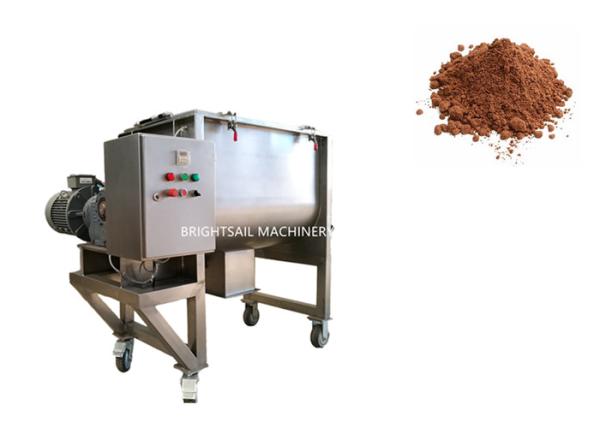

Horizontal ribbon mixer is a kind of machine to mixing dry
materials,powders and particles.When it running,the two ribbons
rotated to two oppsite directions to achieve the purpose of uniform
mixing.
Application:
It is widely used in the solid-solid (powder material) and
solid-liquid (powder material & fluidity material) mixing in the
field of chemical industry, pharmacy, foodstuff industry, etc.
Main features:
1) Safety net: There is a safety net on the cover, so that operator
cannot reach out arms into the mixer, danger can be prevented.
2) Ribbon inside the mixer: make the mixing effect better.
3) Discharge part: Pneumatic valve is adopted to discharge
material. Mixing dry powder or powder with a little liquid are
applicable.
Technical data:
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
The working principle of mixer:
The outer ribbon push the material from the two ends to the centre,
inner ribbon push the material from center to the two ends.Thus to
achieve material convention.The discharging port is set in the
bottom centre, with the help of the outer ribbon, the material can
be discharged completely.
Export record:
In the past few years, we have sold machines to over 70 countries.
Followed are part of the mixer export pictures
for your reference.
