    Dry Grain / Herb Medicine Grinding Mill Air Classifying Mill

    Ask Lasest Price
    Brand Name : Brightsail
    Model Number : BSP
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Dry Grain / Herb Medicine Grinding Mill Air Classifying Mill

    Dry Grain And Herb Medicine Grinding Mill Air Classifying Mill

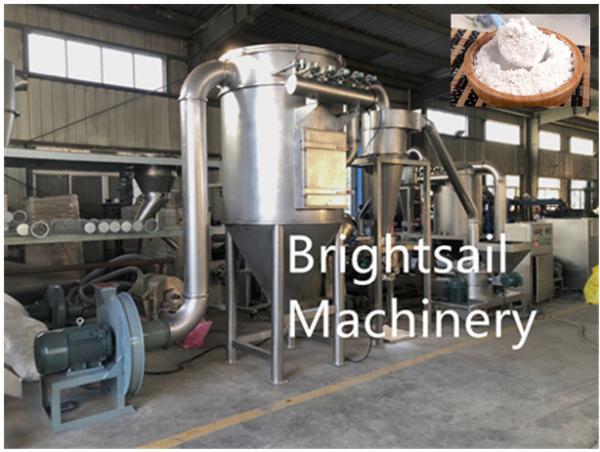

    I. How Air Classifying Mill Work

    The dried materials enter into the BSP pulverizer set(ACM mill) from the feeding hopper then they will get ground by the inside cutters. Under the force of blower, the powder will discharge from the grinder machine.


    II. What Is The Usage Of Air Classifying Mill

    The BSP series pulverizer set(air classifying mill) is impact mill, it is widely used in the food, chemical and pharmaceutical industries for grinding use. For example, it can grind dried sugar, leaf, rice, chickpeas, zinc stearate into fine powder.

    air classifying mill


    III. Air Classifying Mill Advantage

    1) The output size can be very fine, for example, the rice can be ground into 200mesh fine powder.

    2) Very easy to adjust the powder size by inverter.

    3) The production process is continuous with the cyclone and dust collecting system.


    IV. Technical data:

    ModelBSP-350BSP-450BSP-500BSP-750
    Input size(mm)<15<15<15<15
    Fineness(mesh)60-250060-250060-250060-2500
    Capacity(kg/h)20-20040-50060-800120-1800
    Crush motor(kw)1118.53055
    Grade motot(kw)1.545.511
    Blower(kw)7.51118.537
    Feed motor(kw)0.550.550.751.5
    Discharge motor(kw)0.750.751.11.5
    Speed of principle axia(rpm)-6500-5350-4600-3100
    Grading impeller speed(rpm)4000400035003000
    Weight(kg)1600180023003100

    V. Company introduction:

    We Brightsail Machinery are engaged in manufacturing a wide range of grinders and mixers. Our machine can be used in food plant plant and chemical plant for powder making or powder mixing. And we are devoted to offering customization service to our clients to meet various requirements. Within years, we have exported machines to North American, European and Asian countries.


    FAQ:

    Q: What certificate do you have?

    A: We have CE,ISO certificates.


    Q: How to install the machine?

    A: We provide English electric diagram, and English manual.

    99% clients can install the machine by themselves under our guidance.


    Q: Which city are you from?

    A: We are in Wuxi city, which is near Shanghai, the distance is only ~150KM.

    By car, it takes ~2 hours from our city to Shanghai.
