Cocoa Cake Flour Mill Machine For Cocoa Shell Pulverizer Equipment
1)Technical data of cocoa powder grinder
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
2)Introduction of cocoa powder grinder machine

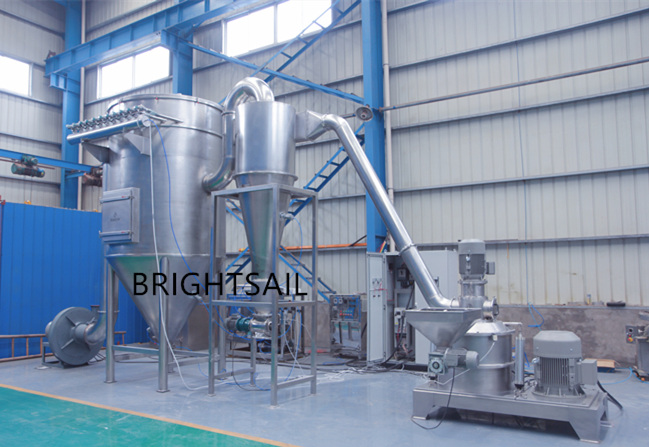

Our BSP cocoa powder grinder is made up of five parts: crusher
part, cyclone, duct collector, blower and electrical control box.It
has properties of wind selection, having no sieve or net, and an
even granularity of the processed material.The production process
going on continuously and the machine can undertake grinding of
chemical products, foodstuff, medicial products, etc.
3)Application of cocoa powder grinder
Chemicals, traditional Chinese medicine, roots, herbs, tea leaves,
corn, rice, oat, wheat, chickpea, mung bean, yellow pea, sorghum,
garlic, star anise, cinnamon, dehydrated vegetables, dried ginger,
turmeric, curry, onion, white sugar, saccharin, MSG, baking soda,
talc, calcium carbonate, bentonite, etc.
4)Working method
The material enters the grinding chamber via the funnel and spiral
conveyor where it is sheared and broken by the fastrotating blades.
The power passes the guide ring and enters the classification
chamber. As the classification wheel is in revolution, both the air
force and centrifugal force act on the powder.
As the particles whose diameters are greater than the critical
diameter (diameter of the classification particles) have a great
mass, they are thrown back into the grinding chamber to be ground
again, while the particles whose diameters are smaller than the
critical diameter enter the cyclone separator and bagtype collector
via the material exit pipe be means of negative pressure wind
conveyance.The discharge material meets the requirement for the
product.
