This is the mill part,
It combines corse crusher area, middle fine milling area, and super
fine milling area together.
It can grind big raw material into fine powder directly.
(combines 3-stage grinding in one mill chamber)
Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | BrightSail |
Certification : | CE ISO, CE ISO |
Supply Ability : | 20 Set/Sets per Month |
Price : | $2,700.00/Sets >=1 Sets |
MOQ : | 1 Set |

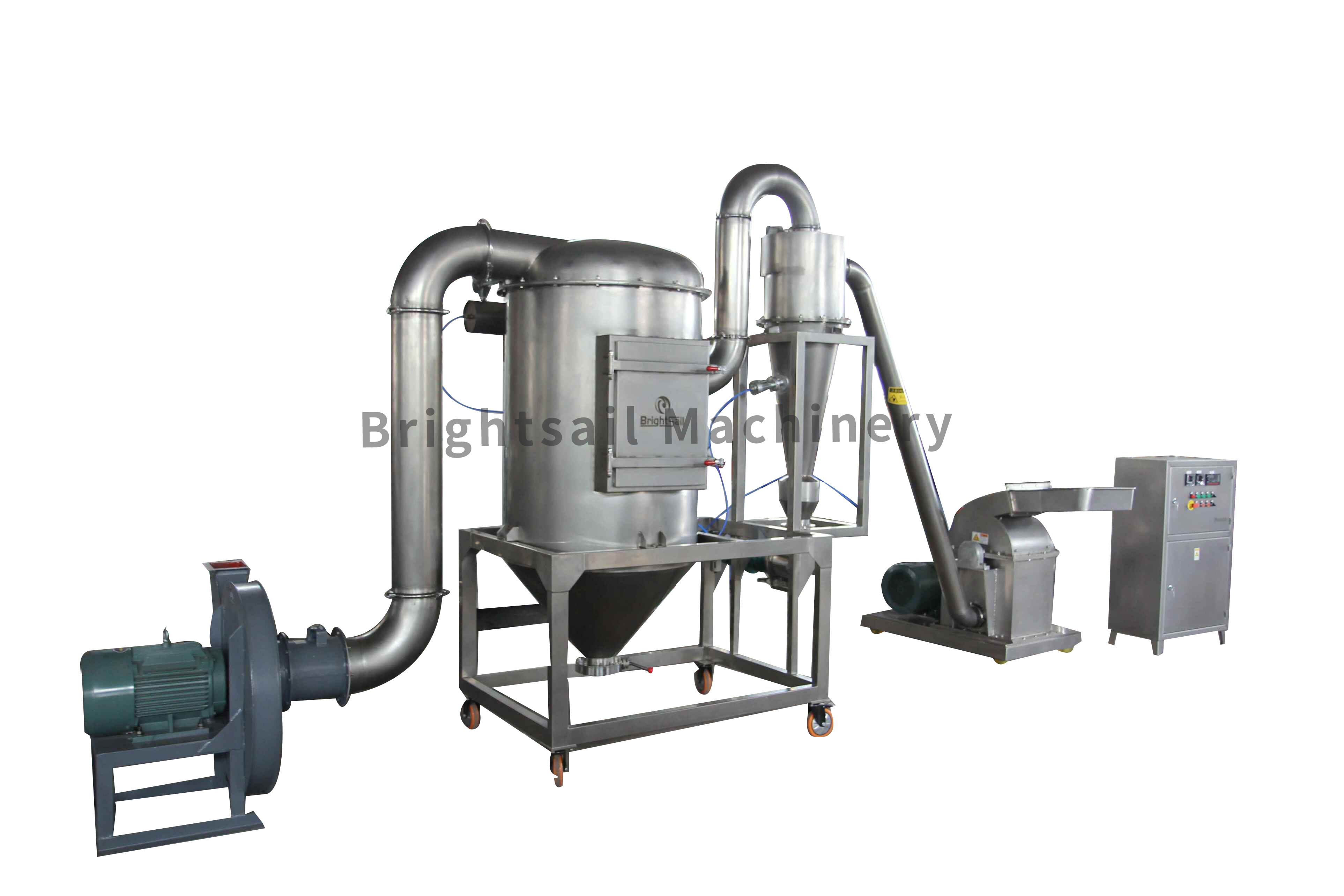

This is our lastes advanced hammer mill set:
It features:
1) NO need screen or sieve in mill chamber, change powder particle size by changing speed;
2) Because it has no screen in mill chamber,when milling, there is
no heat rising in mill chamber;
No need to worry power get stuck in the screens or product quality
get affected by the heat from the mill. That's why it is very
suitable for grinding heat-sensitive material or material contains
fiber or oil.
3) The mill part combines coarse crusher, middle fine milling area and fine milling area( it
combines 3-stage grinding at one time) together, which means it can makes fine powder directly from big
raw material, very effective.
4) It can save more power, its capacity is much bigger than other
same motor traditional mill.
5) You can feed big raw material. (like complete ginger, complete turmeric,complete chilli directly into the mill chamber, it can grind them into fine powder directly.)
this machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.
Model | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
Production capacity (kg/h) | 300~500 | 400-800 | 600-900 | 800-1300 |
Output size(mesh) | 20~150 | 20~150 | 20~150 | 20~150 |
crush motor power(KW) | 30 | 37 | 45 | 55 |
Rotor speed (rpm) | 3300~4200 | 2900~3600 | 2400~3100 | 2100~2700 |
This is the mill part,
It combines corse crusher area, middle fine milling area, and super
fine milling area together.
It can grind big raw material into fine powder directly.
(combines 3-stage grinding in one mill chamber)
Work method
1) From right to left,
they are coarse crush area,middle fine mill area and fine milling
area and blast area.
Material fed in will be milled by the three areas to become fine
powder directly.
2) change powder size by changing speed.
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient.
Pulse Dust Collecting box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag
frames are also made of stainless steel and can be disassembled
easily.
(3) With pulse-jet cleaning, dust can be collected very
conviniently.
TO MAKE SURE BETTER QUALITY
1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Schneider/Delixi
3) We use bearings from SKF
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | Depends | |
Weight | Depends | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. |
Packaging | ||
Size | 20 ft container; 40 ft container | |
Weight | denpends | |
Packaging Details | If machine is big, we will fix the machine inside container with
steel wires and nails. Machine won't move inside the container. |
