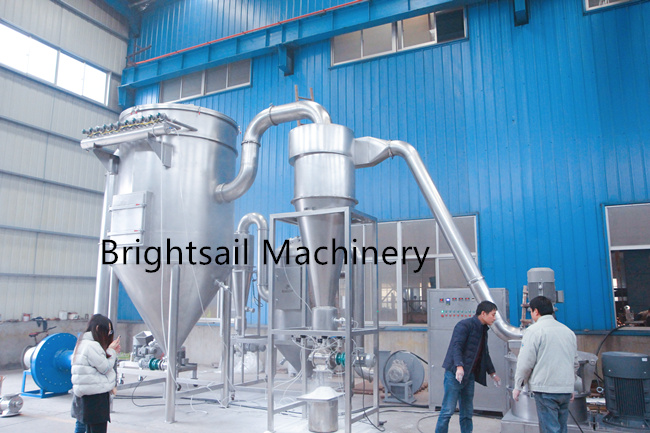

Superfine powder grinder machine grain oat bran pigeon pea flour
mill pulverizer
BSP ultra-fine pulverizer is widely used in pulverizing medicine, chemistry, foodstuff,
agricultural and sideline products, such as Chinese herb, grains,
roots, leaves, spice, crystal materials, vehetables, etc.
It's used in making super fine powder, with fineness up to
2500mesh, has the advantages of high efficiency, easy operating,
easy cleaning, steady production, hard and durable.
Working method:
Through the high-speed rotation of the crushing disc, under the
action of centrifugal force, the material is crushed by the impact
of a hammer mounted on the crushing disc, and is then rotated to
the surrounding ring gear at a very high speed. The air flow
changes instantaneously due to the change of the tooth surface. The
material is subjected to alternating stress in this gap and is
further crushed completely under this repeated action. The
pulverized material enters the pulverization and classification
chamber, and is classified by the rotating classification wheel by
the balance of the aerodynamic force and the centrifugal force. The
separated coarse materials are returned to the pulverization
chamber from the bottom of the inner cavity of the shroud and
repeatedly pulverized. The material (finished product) that reaches
the fineness is sucked into the classifying impeller and discharged
from the discharge port.
Main features:
1. The drive and classifier of the machine adopt variable frequency
speed regulation for stable operation.
2. Continuous production from feeding, crushing to classification
and screening, with less turnover. Reduce labor intensity
3. The crushing cutter is made of alloy material after high
frequency quenching treatment, which has the advantages of high
hardness, high wear resistance and long service life.
4. Adopting frequency conversion classifier, with adjustable
crushing fineness, to meet users' requirements for product fineness
5. The electrical control system of the whole machine is optimized
for simple operation and easy maintenance.
Packing and shipping:
Standard wooden case package, or in container without packing, to
prevent them from destroying during transportation.
Delivery by Sea, Express (DHL, Fedex etc), By air.
We will choose the most safety, convenient and economic way to
delivery goods.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
