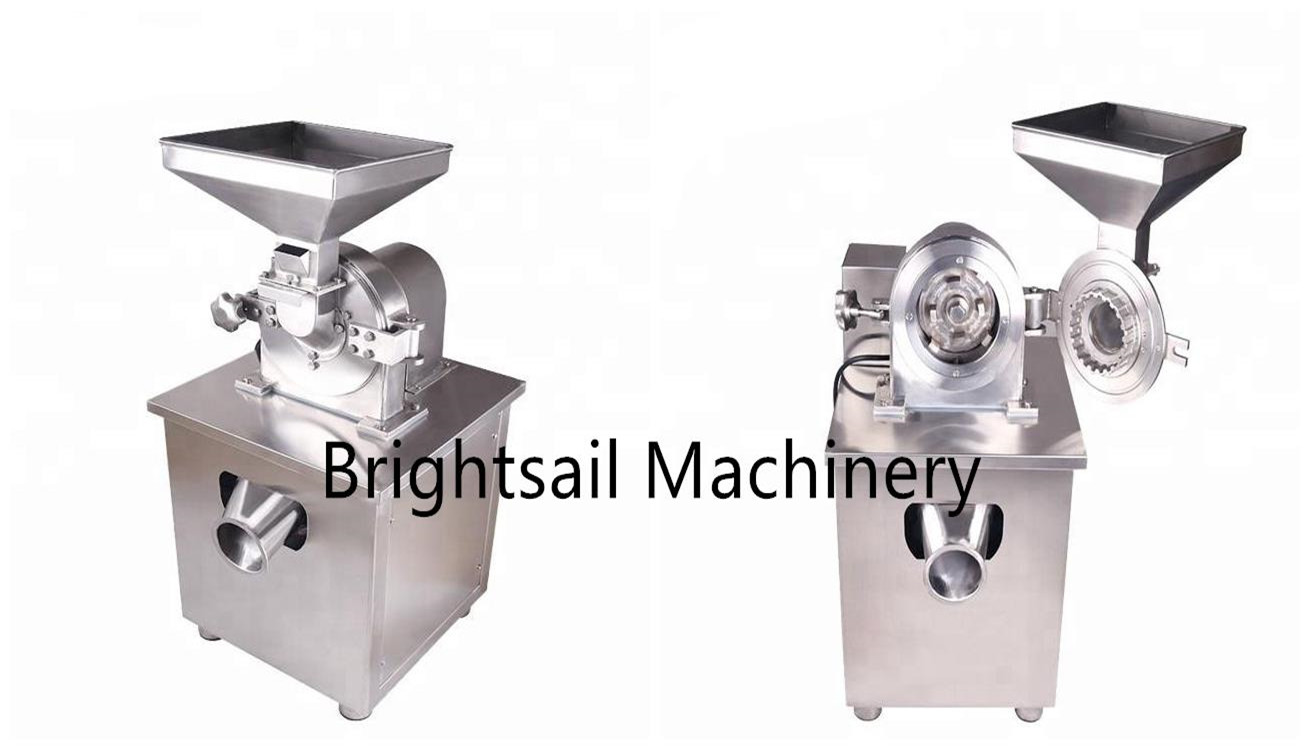

Small crystal food powder grinder machine fine sugar salt flour
milling machine
BSU universal crusher is widely applied for the material crushing by the industries of
pharmaceutics, chemical and foodstuff, etc. For example, spice,
rice, wheat, sugar, salt, cassava, moringa leaves...etc.
There are two kinds of cutters for you to choose. One is hammer
type, another is disc type. The grinding effect of disc type is a
little better than hammer type, which means, disc type can make
finer powder than hammer type. Disc type is more likely to heat up
than hammer type. When material is very heat sensitive, hammer type
is more recommended.
Working method:
It uses the high-speed relative movement of the moving grooved
plate and the fixed grooved plate to crush the material through the
combined effect of the collision and friction of the grooved plate
and the mutual collision of the materials. Because of its simple
structure, firm and stable operation, and good crushing effect, the
crushed material can be discharged directly from the crushing
chamber of the host. The required particle size can be obtained by
installing screens with different apertures.
Main features:
1) Simple structure,easy in installation and maintation.
2) Adopting advanced world famous brand components in
bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole
sealed design,no pollution.
4) You can get different powder particle size by changing the
screen/sieve inside the mill chamber.
After-Sales Service:
Pre-sale service.
1. 24 hours service available(for emergency,please call us
directly)
2. Generally,we provide solutions within 24 hours after getting all
necessary information
3. Quotation will be provide after solutions confirmed by client
4. Other necessary matters.
In-sale service.
1. Detailed drawing will be provided for confirmation
2. Arrange the production and suggest update the progress
3. Arrange the package,shipping mark and shipment
4. Provide necessary documents for customs clearance.
After-sales service.
1. 24 hours service is available
2. All the products have 12 months warranty period(except the
quick-wear part)
3. All the spare parts will be provided at cost price
4. We can provide free technical guidance and training.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 | 900 |
