Dry fruit food powder machine lemon orange juice flour V type
mixing machine
BSV powder mixing machine is suitable for use in the pharmaceuticals, chemical and food
industries for mixing powder or granular materials.The cylindrical
structure is the distinguishing feature and the mixing ability is
well-proportioned and efficient with no blind spots in the
cylinders and no accumulation of materials.This machine is
straightforward and it is easy to operate.
Working method:

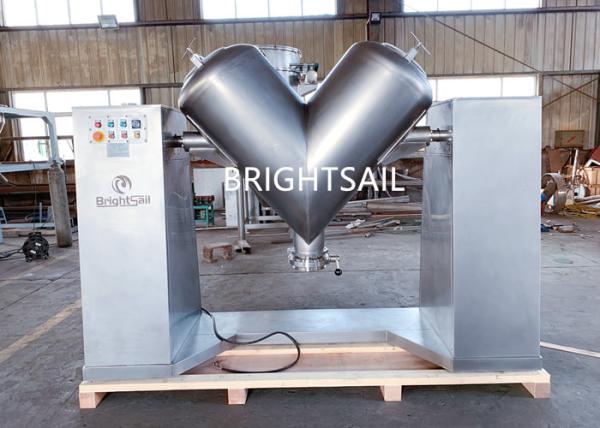

The V-type mixer is welded together by two V-shaped cylinders. Due
to the rotating motion, the powder particles are continuously
alternately repeated, split and fused in the inclined cylinder. As
the particles slide, they line up in space. The particles are
continuously distributed on the newly generated surface. Therefore,
repeated cutting, diffusive mixing, and no mixing dead ends are
repeated.
Main features:
1. It adopts manual feed and closed valve disc discharge, which can
avoid dust spill.
2. With unique mixing barrel structure, high efficiency blending,
no dead ends. 3.Using stainless steel material can prevent the
mixing materials from being polluted.
4. The inside and outside of machine are made of stainless steel.
5. Mixing evenly and it is applicable to a wide range of fields.
6. It also can be equipped with the compulsory mixer according to
the users demand.
7. It is suitable for smaller powder, blocks and the material that
contain a certain mixture of water.
8. The machine is also equipped with a timing device, users can
adjust the mixing time.
After-sales service:
Training and Use
1. We will supply with the machine operation manual in English
version for installing and operation.
2. We will make training video for client’s reference.
Warranty and After sales service
1. Our warranty is within 12 months from the date when client
receive the material.
2. We supply after sales service for 24 hours, 7 days per week.
Customer can contact us any time.
3. When some problems can’t be solved by customers, our engineer
can go to door to support.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
