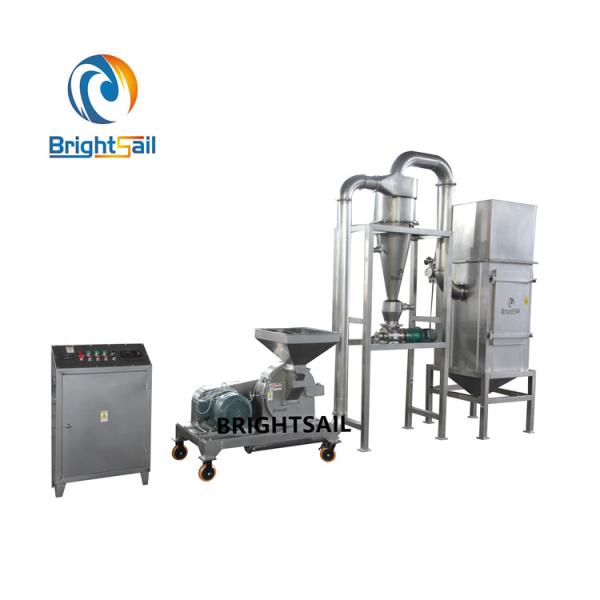

Dry food grain rice wheat barley maize flour milling powder making
equipment
BSG grinding set is widely used in fields of foodstuff,
chemical,paint, medicine...etc.In foodstuff fields,it can grinding
cooked
soybean,sugar,salt,cinnamon,pepper,garlic,ginger,rice,tea...etc.It
is connected with a cold air machine,it can grinding high oil
content material.
Working method:
Raw material enters into the grinding chamber through the feed
hopper,impacted by the high speed rotary cutter,thrown to the fixed
liner,then is bounced and sheared.Beside the grinding chamber there
is a high speed fan blade,which produces positive pressure air
flow,under the force the pressure air,powder goes through the
screen more quickly and be absorbed into the cyclone.Part of the
superfine powder goes to the pulse dust collecting box,so there is
no waste and no fly dust during production.
Main components:
1. Crusher part:unique design,crusher part won't get hot even
though working for hours.Color and nature of material won't
change.Change powder size by changing different mesh screen.
2. Cyclone part:cyclone can seperate dust from
powder(granules).Rotary valve make powder discharge speed even,and
is also made of stainless steel.It is convinent to clean and
dismantle.
3. Pulse Dust Collecting box:dust is collected inside the dust
collecting box.Inside box, there are many dust collecting bags and
the bag frames are also made of stainless steel and can be
disassembled easily.With pulse-jet cleaning, dust can be collected
very conviniently.
Main Features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric
parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust
collecting box.
4) During production,temperature remains normal, will not get hot.
So material's color and nature won't change.
5) Uniqe design, with same power consumption, it can achieve much
bigger capacity.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and
manufactures overall powder processing solutions for the Chemical,
Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries,
like powder grinding machines, mixing machines, sifting
machines...etc.And our company has been one of the most famous
powder equipment manufactures in the industry.
Since we have sold many machines to more than 50 countries,we have
enough experience and technology to help you to find a most
suitable machine.We wish to grow up and develop together with all
new and old customers.
Drawing:
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
