SS304 food powder mixing machine laboratory cocoa coffee flour
blender machine

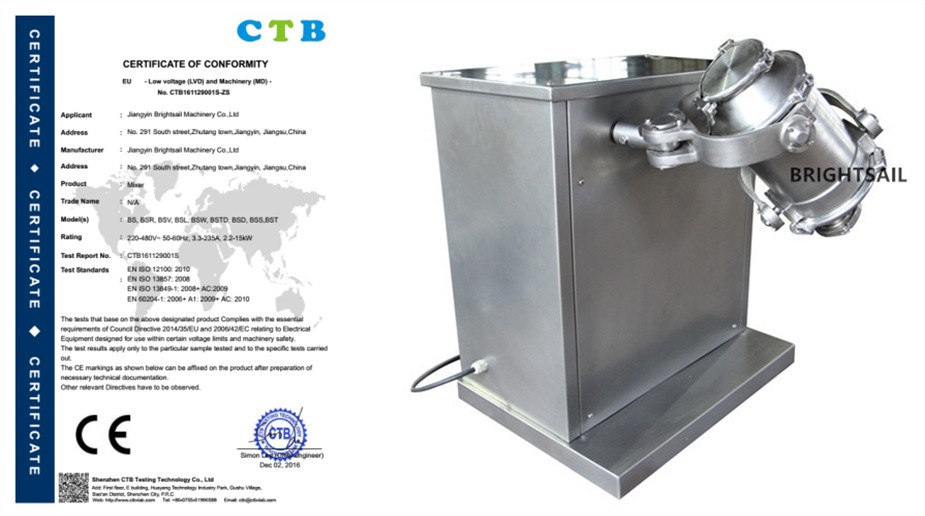

Our BSTD series 3D powder mixer is suitable for mixing dry, powdery materials such as those used
in the pharmaceutical, chemical, food and metal powder industries.
They mix ingredients of different crystal size and density into a
homogeneous product quickly and in a closed environment, without
contact with the working environment or other materials.
It adopts a unique 3D pendulum and rotary trajectory, which mixes
the ingredients efficiently by constantly pushing them forward.
Working method:
The cylinder with materials is driven by the transmission shaft to
move, rotate and roll in a circular composite motion, so that the
materials move along the cylinder annually, radially and axially to
realize the mutual flow, dispersion, accumulation and mixing of
materials. For the purpose of thorough mixing.
Main features:
1. The equipment needs not to set base, installation and servicing
are convenient, and performance life is long.
2. Mixing effect is good, mixing time is short, high mixing
uniformity.
3. Low height, small gyration space.
4. Replaceable mixing drum, simple installation, no dead spot or
residual in discharging, easy cleaning, conforming to GMP
requirements.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and
manufactures overall powder processing solutions for the Chemical,
Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries,
like powder grinding machines, mixing machines, sifting
machines...etc.
Brightsail is constantly committed to develop new advanced
techniques and methods on the machines, since our goal is to be
your trusted manufacture of creative and value added process
solutions.
Technical data:
| Model | BSTD-5 | BSTD-10 | BSTD-25 | BSTD-50 | BSTD-100 | BSTD-200 | BSTD-400 | BSTD-600 | BSTD-800 | BSTD-1000 |
| Volume of work barrel(L) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 3 | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 |
| Spindle speed(rpm) | 0-19 | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 |
| Motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 70 | 120 | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
