Protein food powder mixer machine medicine powder vitamin mixing
machine
BSV powder mixing machine is suitable for mixing two or more kinds of dry powdery and
granular materials in the pharmaceutical, chemical, food and other
industries, and mixing materials containingcertain moisture. The
machine has unique structure, high mixing efficiency, no dead
angle,stainless steel material, polished inner and outer walls,
beautiful appearance, even mixing, wide application range, and can
be configured with forced agitator according to userrequirements.
Working method:

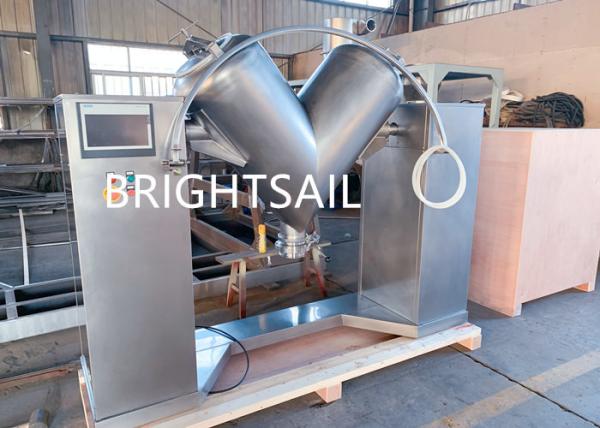

This machine is welded together by two V-type containers. The shape of the
container is asymmetric with respect to the axis. Due to the
rotating movement, the powder is continuously, alternately
repeated, split, and run in the inclined cylinder. Material is
randomly transferred from one area to another. The powder or
granular micro-lips diffused in the space multiple times,
repeatedly cutting, diffusing and mixing.
Main features:
1. Mirror polished of inner and outer shell to meet GMP standard.
2. No blind angle in the V-shells, no accumulation of materials,
high speed I-bar, efficient and short mixing time.
3. Rotating valve is equipped for discharging
4. Fully integrated motors and controls
5. Can work with vacuum feeding system to create dust-free working
condition.
Why choose us:
1. International high quality certification product chain
2. Manufacturer, more reasonable price
3. Solid technical support and after-sales service
4. Uphold the principle of “Customer Supreme”
5. Exports to more than 50 countries and regions, good customers
feedback
6. One-stop service, customized exclusive project feasibility
report
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
FAQ:
If you want to send inquriy to me about our V type powder mixer
machine, could you please tell me?
1) What material you want to mix?
2) What capacity you expect ? (kg/batch or litre/batch )
3) What voltage you want? For example, 380V 50hz 3p; 440V 60hz,3p;
220V 60hz 3p...etc.
4) What material of the equipment you want? usually we adopt all
stainless steel 304.
You can also choose:
A all carbon steel
B contact part SS304, other parts carbon steel
C all SS 316
D contact part SS 316, other parts SS 304
