Animal food powder machine cassava yam flour milling grinding
machine with CE

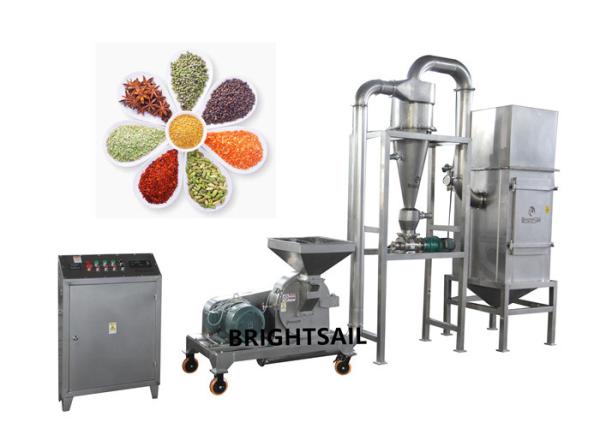

Our BSG self absorb grinding set contains host machine,auxiliary machine, transmission
pipe,electrical control device,feeding device. Auxiliary machine
contains cyclone with bag dust collector and wind closer; The host
machine is installed with active crushing disc device, the
direction of hammer can be changed. Besides crushing, it has the
function of classifying, Winnowing type centrifugal shear and the
size of granules can be controlled. After being crushed, the
material will be sent to wind closer outlet by negative pressure.
It is an idea equipment in lines of food, pharmacy, chemical,etc.
Working method:
The material enters the grinding chamber through the hopper, and is
thrown into the fixed ring gear under the impact of the high-speed
rotating disc / hammer, and then it is bounced and cut. At the same
time, under the alternating effects of impact, cutting, and
grinding forces, the material is finely refined. Under the negative
pressure of the fan and the impeller, the powder is absorbed into
the cyclone and discharged through the sieve and pipe. Pulse dust
collector can collect a small amount of fine dust.
Main Features:
1) The grinding chamber is equipped with a water cooling system,
which can effectively avoid product damage caused by the high
temperature during the grinding process.
2) The sieve is made of high quality stainless steel. special
design. When you need another sieve-sized powder, you can easily
change the sieve.
3) The machine is also equipped with a dust collection system for
collecting the fine powder inevitably generated in the grinding
process into the dust collector. This process ensures that the
final powder discharge of our automatic rotary powder discharge
device is more uniform.
4) All stainless steel structures comply with GMP standards, food
grade, chemical grade and pharmaceutical grade standards.
Drawing:
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
FAQ:
If you want to send inquriy about BSG self absorb grinding set,
could you please tell me?
1) What material you want to grind, is it dry? What is the size of
it before grinding?
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p;
220V...(We only provide 3 phase voltage, because our machines are
all for industrial use,not for family use.)
5) Usually we use stainless steel 304, if you want stainless steel
316, it's ok and please tell us.
