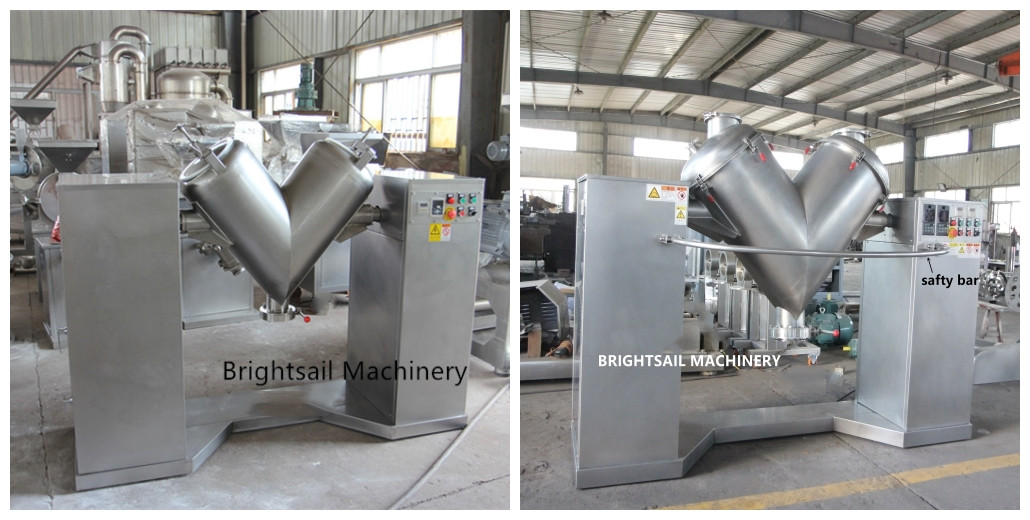

Industry V shape spice powder mixer machine chili turmeric flour
mixing machine
BSV powder mixing machine is used for mixing of dry powder or small granulate material in
pharmaceutical, food-stuff, chemical and other industries.
Featuring unique structure, high mixing function and uniform
mixing, the mixing barrel is made of stainless with polished
internal and external walls.
This is one of the most popular mixing machines in our company, and
we have sold this machine to many countries, such as America,
Thailand, Mauritius, Australia, Greece, Ecuador...etc.
Working method:
This machine is composed of two cylinder V-type container welded
together, the shape of the container is non-symmetricrelative to
the axis. Since rotational movement,the powdercontinuously and
alternately repeat, split, mergein the tilt cylinder.Material
randomly pass from one area to another.While the powder or granular
particlesslip,multiplestack in space.Repeated cutting, diffusion
mixing.
Main features:
1. Compact structure, operation simple, maintenance convenience.
2. All parts contact with materials are all made of high quality
stainless steel, and the inside wall and outside wall of the mixing
vat are mirror polished, easy to wash, no pollution, meet the GMP
standard.
3. The machine adopts V type asymmetric mixing vat to compound, no
dead angle, no accumulation of materials, high speed, and short
mixing time, high uniform mixing.
4. Running steady, no noise.
Our company:
Founded in 2002, Brightsail Machinery has been devoted to the design and
manufacture of overall solutions for powder processing in the
chemical, pharmaceutical, food, mineral, cosmetics, plastics and
other industries, such as pulverizers, mixers, drying equipments,
feeding machines, etc. After years of experience and technological
progress, we have become one of the most popular manufacturers in
the industry.
We have sold our products more than 50 countreis,we have enough
experience and technology to help our customers to find a suitable machine. If
you have any interest in our products, please don't hesitate to
contact us!
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
FAQ:
1. What material you want to mix?
2. What is the bulk density(g/cm³ or kg/m³) of it?
3. How many liters or kilos of material do you need to mix per
batch?
4. What machine material do you want,all stainless steel 304 type
or only contact part stainless steel 304,other carbon steel type?
