Big capacity medicine salt baking soda powder pin mill grinding
machine
BSZ pin mill specialized in milling for various fruit, walnuts,
coffee beans, cocoa beans, peanuts, rice and other food and
chemical raw material. It has 2 grinding discs (cavity disc & door
disc) which rotate against each other to achieve high speed
rotating. It can be used without pulse duct collecting system, just
single mill. If you need no dust during the production, you can
choose pin mill set with the pulse system.
Working method:
Bidirectional pair wheels adopt the way of reverse rotation of
front and back grinding wheels, thus this way improves the crushing
effect. Double discs install the needle cylinders whose diameters
are different, every part arrays needles and bars through the
technology of three dimensional simulation, designing the layout
rationally and thus it can control the materials to achieve the
effective split effect in the gap of needle bar efficaciously.
Needles and bars can adopt the shape of hexagonal,square,wolf teeth
and so on according to crushing materials. The shape of wolf teeth
is all called corn cob rollermill, and this machine has the special
effect for the engineering plastic with high melting point to flour
at room temperature. Needle and bar mill adopt the way of
quantitative feeding of screw, controlling the even motion of
materials in the inward of millstone. The ways of discharge are
output in the natural state and discharge of negative pressure
method. This machine does not have mesh screen in the chamber of
grinding wheel, and it adjusts the fineness of crocus through the
wire-speed of mill wheel, it can also classify materials through
external gradingmethod.
Main components:
1. Crusher part:With 2 grinding discs, its speed can achieve very
high, so the powder made by auto rice mill machine is finer than
common mill.
2. Cyclone part:cyclone can seperate dust from
powder(granules).Rotary valve make powder discharge speed even,and
is also made of stainless steel.It is convinent to clean and
dismantle.
3. Pulse Dust Collecting box:dust is collected inside the dust
collecting box.Inside box, there are many dust collecting bags and
the bag frames are also made of stainless steel and can be
disassembled easily.With pulse-jet cleaning, dust can be collected
very conviniently.
Main features:
1) Simple structure in linear type, easy in installation and
maintation.
2) Adopting advanced world famous brand components in pneumatic
parts, electric parts and operation parts.
3) No need screen in grind chamber, change powder size by changing
speed.
4) Can make very fine powder.

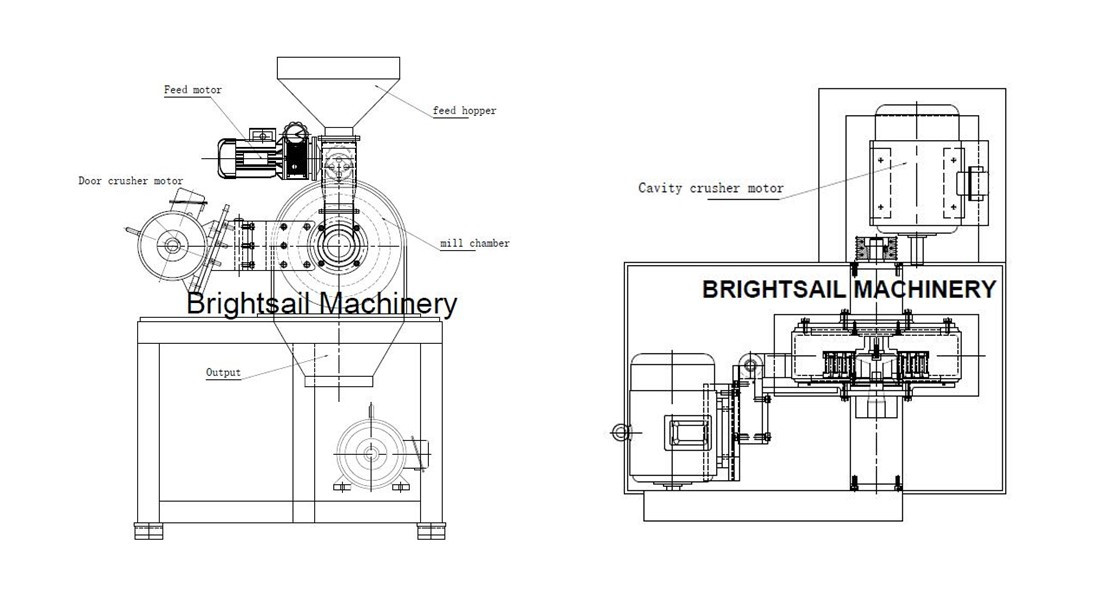

Drawing:
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
