Superfine icing sugar food powder machine white sugar flour milling
machine
BSP ultra-fine pulverizer is an advanced pulverizer, which has the
advantages of stable technical performance, low noise, low
consumption, high efficiency, adjustable fineness, and low
temperature rise. It is very suitable for sugar, edible powder,
Chinese herbal medicine, spices, etc. This machine consists of a
crusher part, a powder collecting device, a conveying pipe and an
electric control box. The crusher part is provided with an air
classification device to make the product size arbitrarily
adjustable to prevent excessive crushing. The crushed powder is
conveyed to the cyclone dust collector by negative pressure, and
then discharged through the discharge valve.
Working method:
The raw materials enter the crushing chamber through screw feed,
and are cut and sheared by high-speed cutters and eddy currents
generated by high-frequency vibration. Due to the effect of
negative pressure, the crushed powder enters the common wheel, and
through the rotation of the stage wheel and the centrifugal force
of the air knife, the powder larger than the stage particle size is
returned to the crushing chamber, and the qualified powder enters
the pipe for discharge.
Main features:
1. Compact design and reasonable structure. The material is
equipped with an internal grading mechanism that allows grinding
and grading to occur simultaneously, thereby reducing energy
consumption.
2. Equipped with a fan, continuous heat dissipation, suitable for
grinding of heat-sensitive materials.
3. Strong adaptability and narrow particle size distribution. The
product size is uniform, and the fineness can reach 80-320 mesh.
4. The pipeline is quickly dismantled for quick and easy
disassembly and cleaning.
5. Equipped with cyclone separator and dust collector, no flying
powder phenomenon during production. The dust bag can effectively
collect the fine powder in the air stream, and meet the
requirements of clean and environmental protection for exhaust
emissions.
6. The fine powder collected in the dust bag can be effectively
recycled. Thereby reducing material losses.
Our company:
Our company specializes in the production of grinding
machines,mixing machines,drying machines,sifting machines, etc.,
and is widely used in food, pharmaceutical, chemical and other
industries, and has achieved excellent results in the industry.
Brightsail Machinery has always been committed to developing new
advanced technologies and methods on machines, because our goal is
to be your trusted manufacturer of creative and value-added process
solutions.

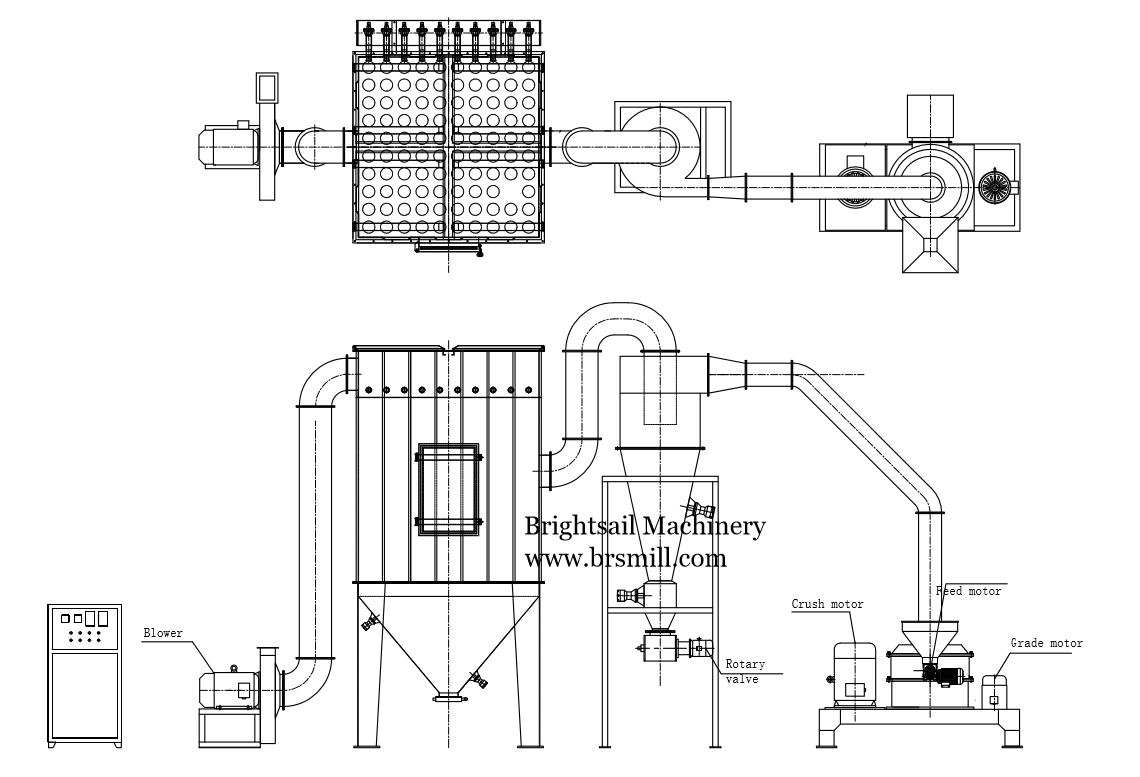

Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
