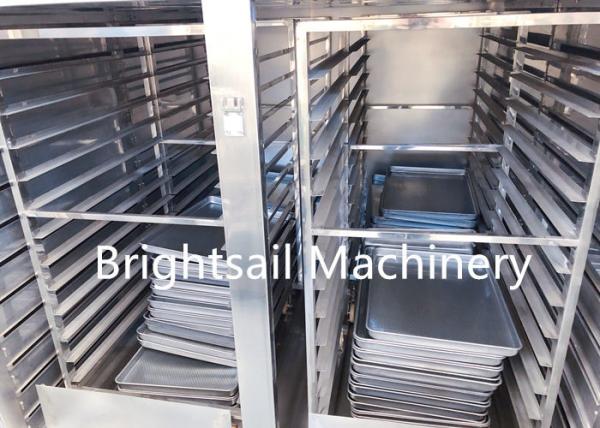

Food grade dryer oven machine date palm walnut peanut nuts drying
equipment
BSO hot air circulation drying machine is a versatile drying equipment, it is suitable for
heating,soliding and drying material and product in the field of
pharmaceutics, chemical, foodstuff, agricultural and other
industries, such as: spices, Chinese traditional medicine, herbs,
leaves, flowers, roots, seafood, grains, fruits, vegetables, nuts,
etc.
Working method:
Under the action of forced ventilation, the clean strong air which
is preheated is sent by circulating fan, and the hot air is evenly
distributed through the air regulating plate in the box, and then
it is heated into the workroom, then it is heated by circulation,
and at the same time, The clean air is further replenished through
the air inlet, and the wet air is automatically or forcibly
discharged from the tank by the outlet, thus achieving the effect
of drying and sterilizing.
Main features:
1. Two kinds of heat source are used for heating : electricity or
steam.
2. The inner wall of oven body is fully welded. Each transition
adopts circular arc and no dead.
3. The seal property of whole machine is good. Being adopted unique
guide rail seal apparatus, the seal property can be guaranteed.
4. The air inlet is equipped with high effective air filter and the
damp exhaust outlet is equipped with middle effective air filter.
5. All parts inside the oven can be assembled and disassembled
quickly in order to clean conveniently.
6. The whole machine is in conformity with the requirements of GMP.
Our company:
Brightsail Machinery is a professional manufacture of grinding
machines, mixing machines, drying machines, sifting machines,
conveying machines, packaging machines, etc.We have implemented a
strict and complete quality control system, which ensures that each
product can meet quality requirements of customers. Besides, all of
our products have been strictly inspected before shipment. Our
products conform to international standards, such as CE, ISO.
Brightsail also has a lot of top talent which have more than
10years of work experience, include research, design, manufacture
and after sale service. Our products sell to more than 50 countries
and also have the good cooperation with the foreign client and
vendor.
We are sure that our high quality products and excellent services
will be appreciated by the growing list of satisfied customers.
Contacting us is the first step to build a long and successful
business relationship with us. Welcome to contact us!
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
