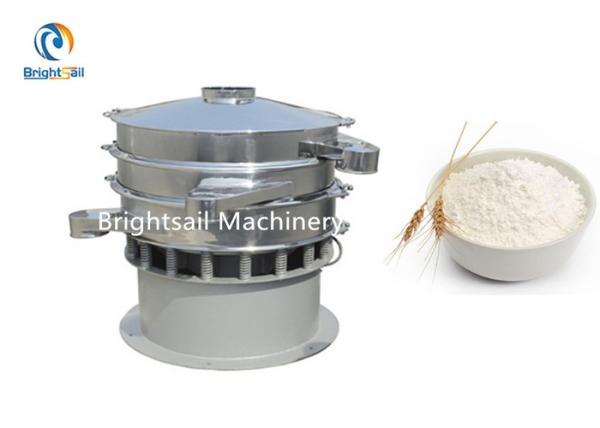

Circular maize powder sifter machine wheat rice corn flour
vibrating screen
BSST sifting machine is a high performance round vibratory separator designed to
improve products quality. It is used to sieve particles or powder.
This sifting machine is highly used in industrial screener grading
applications in numerous industries, such as food, metallurgy,
ceramic, chemical, pharmaceutical, powder coatings and others.
It consists of vertical vibration motor, screen base, mesh frame,
screening chamber and rubber vibration ring and so on.This machine
can be used either for single layer or multi-layer grading.
Working method:
Its vertical motor, which is installed with eccentric hammers on
the top and bottom, regarded as a vibratory source. The eccentric
hammers change the track of rotation in to horizontal, vertical and
inclined movement, and then pass the movement to the sieving
surface. Adjusting the phase angle between the top and bottom
eccentric weight can change trajectories of the materials on the
sieve.
Main features:
1) High Efficiency, exquisite design and durability, any powder and
mucus can be screened.
2) Easy to change the screeen, easy to operate, easy to clean.
3) The mesh is not blocked, the powder is not flying.
4) Impurities and coarse materials are automatically discharged and
can be operated continuously.
5) Unique grid design, the screen is used for a long time, and it
takes only 3-5 minutes to change the screen.
6) Small size, easy to move.
Our company:
Brightsail Machinery is one of leading manufacturer of pulverizer
machine, mixing machine, drying machine, vibrating screen sifter,
conveying machines and other powder solutions machines with more
than 15 years designing and manufacturing experiences.All of our
products are widely used in food, pharmaceutical, chemical and
other fields. Warmly welcome friends from all over the worlds to
our company, we looks forward to sincere cooperation and mutually
beneficial development with you.
Technical data:
| Model | BSST-600 | BSST-800 | BSST-1000 | BSST-1200 | BSST-1500 |
| Capacity(kg/h) | 180-2000 | 200-2500 | 250-3500 | 300-4000 | 350-4500 |
| Power(kw) | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 |
| Screen mesh | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
| Diameter(Ø)(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Vibrating freq | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight(kg) | 200 | 300 | 410 | 500 | 650 |
FAQ:
If you want to get a detailed quotation of a suitable flour sifting
machine,please tell us the details as below:
1. What's the name of your material?
2. How many kgs do you need for per hour?
3. What the material of the machine you want?
4. What the dimension of the machine you want?
5. How many layers you need?
6. What's your industrial voltage?Like 380v 50hz 3phs;220v 60hz
3phs,etc.
