Rotary grain powder sifter machine icing sugar salt baking soda
vibrating sieve

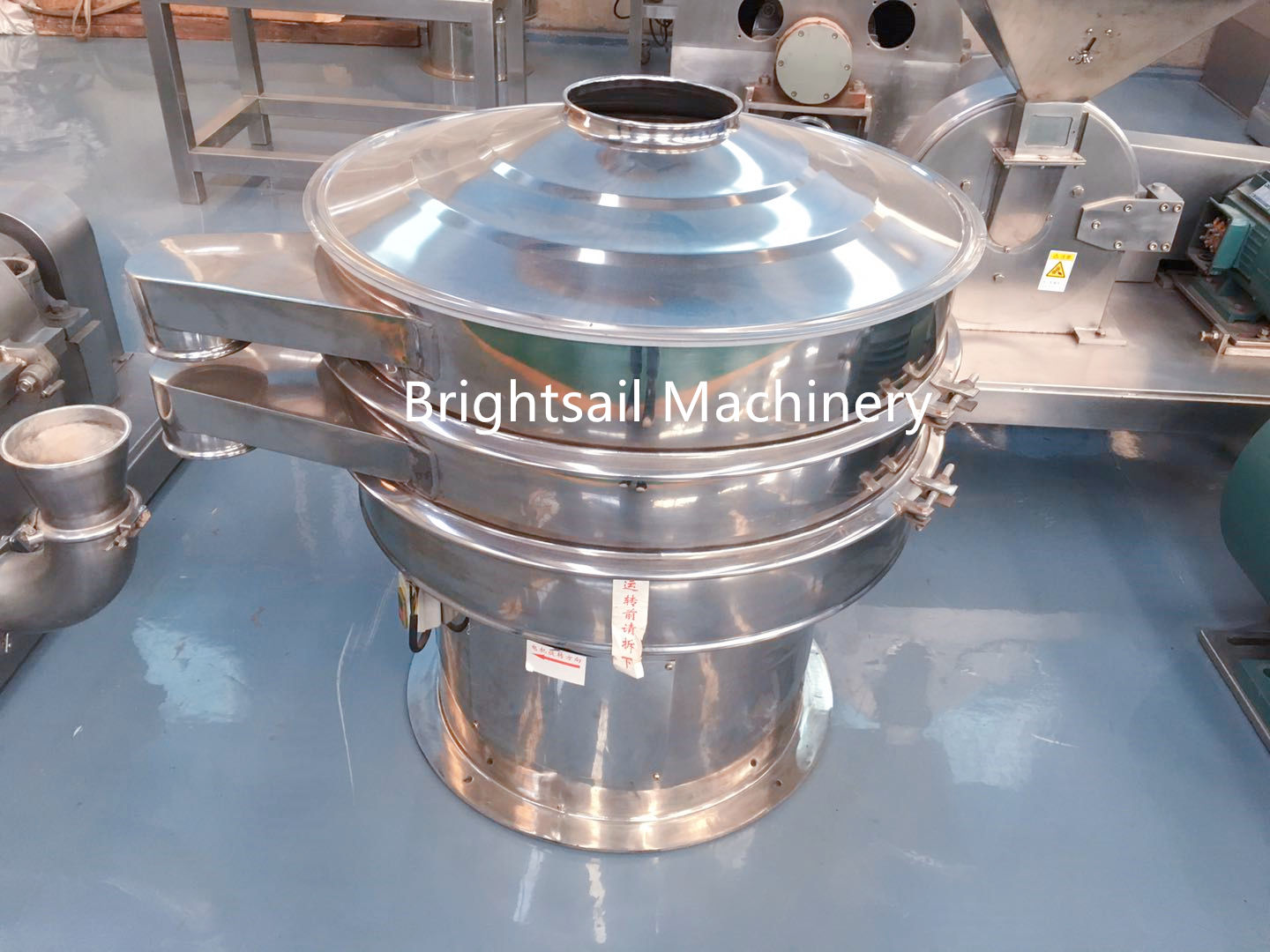

BSST sifting machine is a high-performance circular vibration separator designed to
improve product quality. Used to screen granules, powders and
mucus. The screening machine is widely used in industrial screening
of food, metallurgy, ceramics, chemical, pharmaceutical, powder
coating and other industries.
Working method:
The fundamental principle of our powder sifting machine is that the
eccentric hammers installed on the top and bottom ends of motor
changes the rotation motion of motor to horizontal, vertical and
inclined three-dimensional motions, and then passes this motion to
screen surface, achieving the purpose of classification, filtering
and removal of impurities.
Main features:
1. High efficiency, refined design, duration,any powders and
mucilage are suitable for using.
2. Easily to replace the screen, simple operation and convenience
washing.
3. Never jam the hole meshwork, no powder flying
4. Discharge the impurity and coarse materials automobile and
operates continuously.
5. Unique screen frame design, long duration of screen, only 3-5 to
replace the screen.
6. Small volume, move easily.
7. The highest layers of the screen are about 5 layers.
Our company:
Brightsail Machinery has passed the ISO9001 international system
certification, the main products: grinding machines, mixing
machines, drying machine, sifting machines, conveying machine,etc
have through the CE certification, with self-import and export
rights. Our company can also design, customize and install projects
for customers on site. Customers are located all over the country
and exported to the United States, Britain, Australia, Malaysia,
Indonesia, Canada, Germany, Sapin, India, Thailand and other 50
countries.
Should you have any interest in our products, please feel free to
contact us, we will try our best to provide a most suitable machine
for you.
Technical data:
| Model | BSST-600 | BSST-800 | BSST-1000 | BSST-1200 | BSST-1500 |
| Capacity(kg/h) | 180-2000 | 200-2500 | 250-3500 | 300-4000 | 350-4500 |
| Power(kw) | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 |
| Screen mesh | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
| Diameter(Ø)(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Vibrating freq | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight(kg) | 200 | 300 | 410 | 500 | 650 |
