Stainless steel 304 pneunmatic vacuum powder conveyor feeding
machine
This equipment is widely applied in packer, mixer, tablet press
machine, vibrating screening machine, capsule filling machine and
wet-method pelletizer etc. Vacuum feeder is easy to operate.
Working method:
It is using whirlpool air pump extracting air. The inlet of
absorption material tap and whole system is made to be in vacuum
state. The powder grains of material are absorbed into the material
tap with ambient air and formed to be the air flowing with
material. Passing the absorption material tube, they arrive to the
hopper. The air and materials are separated in it. The separated
materials are sent to the receiving material device. The control
center controls the “on/off” state of pneumatic triple valve for
feeding or discharging the materials.
In the vacuum feeder unit the compressed air opposite blowing
device is fitted. When discharging the materials every time, the
compressed air pulse oppositely blows the filter. The powder
attached on the surface of filter is blown off for ensuring normal
absorbing material.
Main features:
1. Automatic feeding, high-precision control,the whole proccess
without dust flying ,environmentally friendly also can reduce labor
costs.
2. The conveying system is completely sealed for dust-free working
condition,reduce cost also conveient to manage.
3. Adopt fully automatic control system,easily to operate.
4. Modular structure, easy to clean and dismantle.
5. Made of 304 Stainless Steel,prevent raw materials to be
polluted.
5. Energy saving and low running cost.
6. Small and light ,easy to install.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and
manufactures overall powder processing solutions for the Chemical,
Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries,
like powder grinding machines, mixing machines, sifting
machines...etc.And our company has been one of the most famous
powder equipment manufactures in the industry.
Since we have sold many machines to more than 50 countries,we have enough experience and technology to help you to find a
most suitable machine.We wish to grow up and develop together with
all new and old customers.

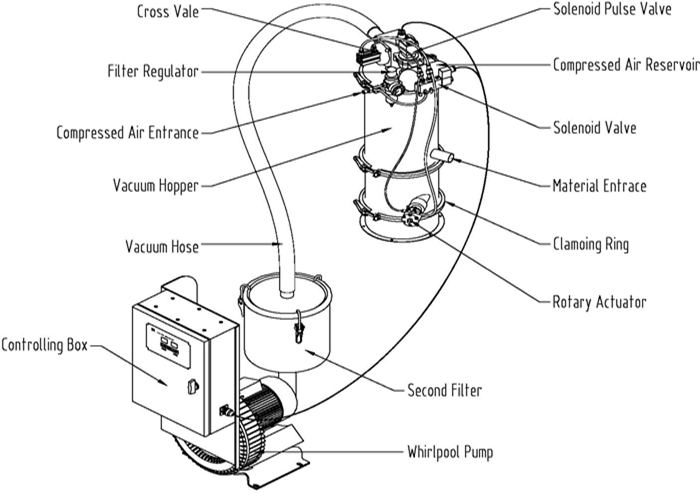

Drawing:
Technical data:
| Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-6 | ZKS-7 | ZKS-20 |
| Motor(kw) | 1.1 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 |
| Capacity(kg/h) | 400 | 600 | 1200 | 2000 | 3000 | 4000 | 6000 |
| Remark:Conveying capacity is measured when pipe is 4 meter long and
conveying material is flour.The longer the pipe is,capacity will
drop.And capacity has great relationship with characteristic of
materails. |
