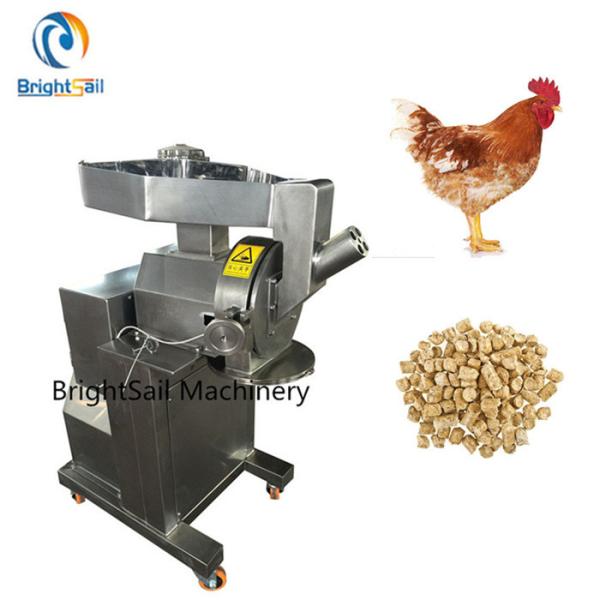

Small grain powder milling machine animal feed corn flour hammer
mill grinder
Our BS hammer mill can make powder in lines of food,
pharmacy,chemical and other industries.
Material is smashed by the cutting and grinding of high speed
knives.Knife of type can be selected according to different
material and size of granules.If you want to change the powder particle size,just change the
screen inside.
Working method:
The machine is composed of three parts: frame, mill chamber and
feeding part. There is one moveable cutter head on the principal
axis. And one fixed gear ring is installed in the mill chamber.
Under the gear ring, there is the screen. When the principal axis
works on high speed, the moveable cutter head runs together. The
materials are impacted, rubbed, cutted by the fixed gear ring and
moveable hammer. And materials also collide with each other. Under
the combined effects, they are crushed into powder. This machine
has simple stcuture, runs smoothly and be easy in maintenance. It
also has a good effect on grinding materials.
Main features:
1. The crushed materials can be directly discharged from the mill
chamber. The fineness can be adjusted by changing screens of
different meshes.
2. The contact part of grinder is made of stainless steel, which
has good corrosion resistance.
3. The inner wall of machine is smooth, no powder and no dead
corners.
4. It is easy to be cleaned, can make the production of medicine,
chemicals, food in line with GMP requirements.
Our company:
In the past 15 years, Brightsail Machinery has designed and
manufactured total powder processing solutions for the chemical,
pharmaceutical, food, mineral, cosmetics and plastic industries,
such as grinding machines,mixing machines,drying machines,packing
and filling machines,etc. Our company has become the most famous
powder equipment in the industry. One of the manufacturers.
Since we have sold many machines to more than 50 countries, we have
enough experience and technology to help you find the most suitable
machine. We hope to grow and develop with all new and existing
customers.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) | <10mm(granule) <15*40*2(leaf) | <10mm(granule) <15*40*2(leaf) | <10mm(granule) <15*40*2(leaf) | <10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
