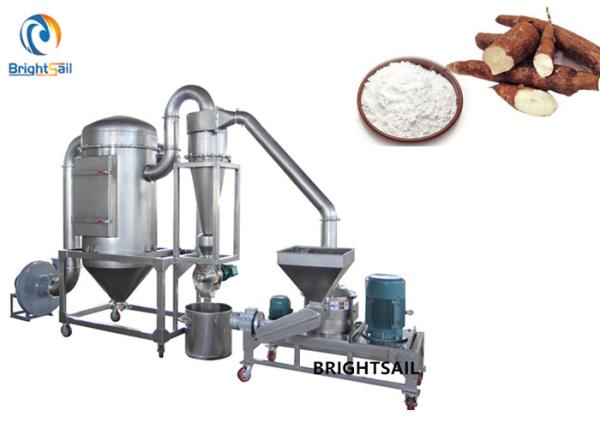

Dried cassava chip powder milling machine yam plantain flour air
classifier mill
BSP ultra-fine pulverizer is widely used in pulverizing medicine, chemistry, foodstuff,
agricultural and sideline products, such as Chinese herb, grains,
roots, leaves, spice, crystal materials, vehetables, etc.
It's used in making super fine powder, with fineness up to
2500mesh, has the advantages of high efficiency, easy operating,
easy cleaning, steady production, hard and durable.
Working method:
The material enters the crushing chamber from the hopper through
the screw feeder, and the crushed material is sheared by the
high-speed blade to obtain the powder. The material is transported
into the cyclone separator by the method of the wind pressure, and
the bag filter is discharged to meet the product requirements.
Main features:
1. The design is compact and structure is reasonable. The machine
is equipped with an internal classification mechanism so that
grinding and classification are carried out simultaneously, thus
reducing energy consumption.
2. Equipped with a blower, which dissipates the heat in the machine
continuously, the machine is fit for the grinding of thermal
sensitive materials.
3. Having a great adaptability and narrow granularity distribution.
The granularity of the product is even and fineness may reach
60-2500 mesh.
4. Regulate the speed of the classifier or amount of the air
without stopping the machine and evenly distributed products of the
required granularity will be obtained.
Our company:
Our company located in Zhutang Town, the first town for foreign
trade at the south of the Yangtze River, Brightsail Machinery faces
the Yangtze River in the north, adjoins Shanghai in the east with a
distance of 120 km and neighbors Wuxi in the south, enjoying an
excellent geographical location and convenient traffic conditions.
Specialized in producing pharmaceuticala machinery, food machinery,
chemical mchinery and daily chemical machinery, our company is a
professional machinery manufacturer integrating research,
development and sale, enjoying a high reputation among our peers in
the industry. Our main products include: pulverizers, mixers,
dryers, sifters, conveyers, packaging machines, etc.
We sincerely thank our old and new customers for your cooperation
and support. We expect you to talk business with us by phone or by
mail and create a brilliant future together.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
