Ginger powder crusher machine kava root ginseng dry mushroom
pulverizer machine
BSP ultra-fine pulverizer is made up of three parts: main machine, auxiliary machine and
electric control box. It has the properties of wind selection,
having no sieve or net, and an even granularity of the processed
material. The production process going on continuously, the machine
can undertake the grinding of chemical products, food, medicine,
cosmetics, plastic, dyestuff, resin, cotourant, grain, spice, etc.
Working method:

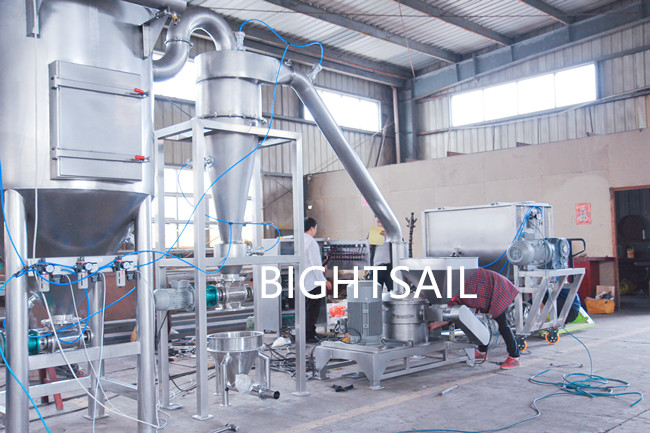

The machine has crushed host, cyclone separator, pulse dust box
induced draft fan and other components. Material from the hopper
into the crushing chamber, through the high-speed rotating hammer
crushing, crushing fineness adjustable grading knife and grading
plate distance to achieve the required fineness, crushed good
material by centrifugal force and induced draft fan into the
Cyclone, then, through the off fan discharge, dust into the pulse
dust box, filtered through the filter cartridge recycling.
Main features:
1. With a winnowing, no screen, a variety of propeties and uniform
particle size
2. The production process is continuous.
3. Grinding operations in the host machine is not heating up,can
grind all kinds of heat sensitive materials.
4. The overall performance has reached international advanced
level, it is widely used in pharmaceutical,chemical,food and other
industrial materials grindered.
FAQ:
If you want to get a detailed quotation of a suitable machine,
please provide the information as below:
1. Describe the material you plan to preduce
2. What are the physical dimensions of the material you are
preducing?
3. What are the significant properties of your material?
4. What is the final reduced (particle) size you desire?
5. What will be the final use of the reduced material?
6. What is the maximum throughput capacity (lbs. Per hour) you
desire?
7. What is the average throughput capacity (lbs. Per hour) you
desire?
8. Electrical requirements: Voltage---- Phase-----Cycle
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
