Wheatgrass crusher machine ginger leaf flakes making grinding
equipment
BSC coarse crusher is mainly used in Chinese herbal medicine, food, agricultural
products, chemical industry and other industries. It processes
hard-to-break materials, including broken plastic and rubber, and
can also be used as a pre-grinding process. Auxiliary equipment,
not limited by material viscosity, hardness, softness and fiber,
has good crushing effect on any material.
Working method:
When the crusher works, the motor rotates, the eccentric shaft is
driven by V-belt and pulley, and the cymbals move according to the
adjusted track. When the raft approaches, the movable raft also
periodically swings back and forth to the fixed raft. The material
is squeezed, split and bent between the two plates. When the slab
is separated, the lower part of the crushing chamber has been
broken into materials smaller than the discharge opening, and
dropped automatically by the self weight. The materials located at
the upper part of the crushing chamber have not been broken into
materials smaller than the size of the discharge opening, but only
a certain distance from the discharge opening, until the moving jaw
firmly fixes the raft again, and the materials falling in the
crushing chamber are crushed again; until all the materials in the
crushing chamber are discharged from the discharge port.
Main features:
1. Designed according to GMP standard and wholly made of stainless
steel, making the medicine and food met the national hygienic
requirement.
2.This machine has simple structure, convenient cleaning and low
noise, being the ideal equipment for coarse crushing.
3.Change the particle size by changing the screen.
Our company:
Brightsail Machinery is a wholly-owned enterprise integrating
sales, production and development. Our company mainly produces
shredders, mixers, dryers, packaging machines, etc. After more than
2002 years of continuous development, the company has sold machines
to more than 50 enterprises, and has won a good reputation in the
industry. It fully meets the needs of customers and adheres to the
Quality, service and reputation first are our tenets. Welcome new
and old customers to consult and order various suitable powder
processing equipment.
Technical data:
Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm) |
960 | 960 | 960 | 960 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
Weight(Kg) | 200 | 300 | 380 | 500 |

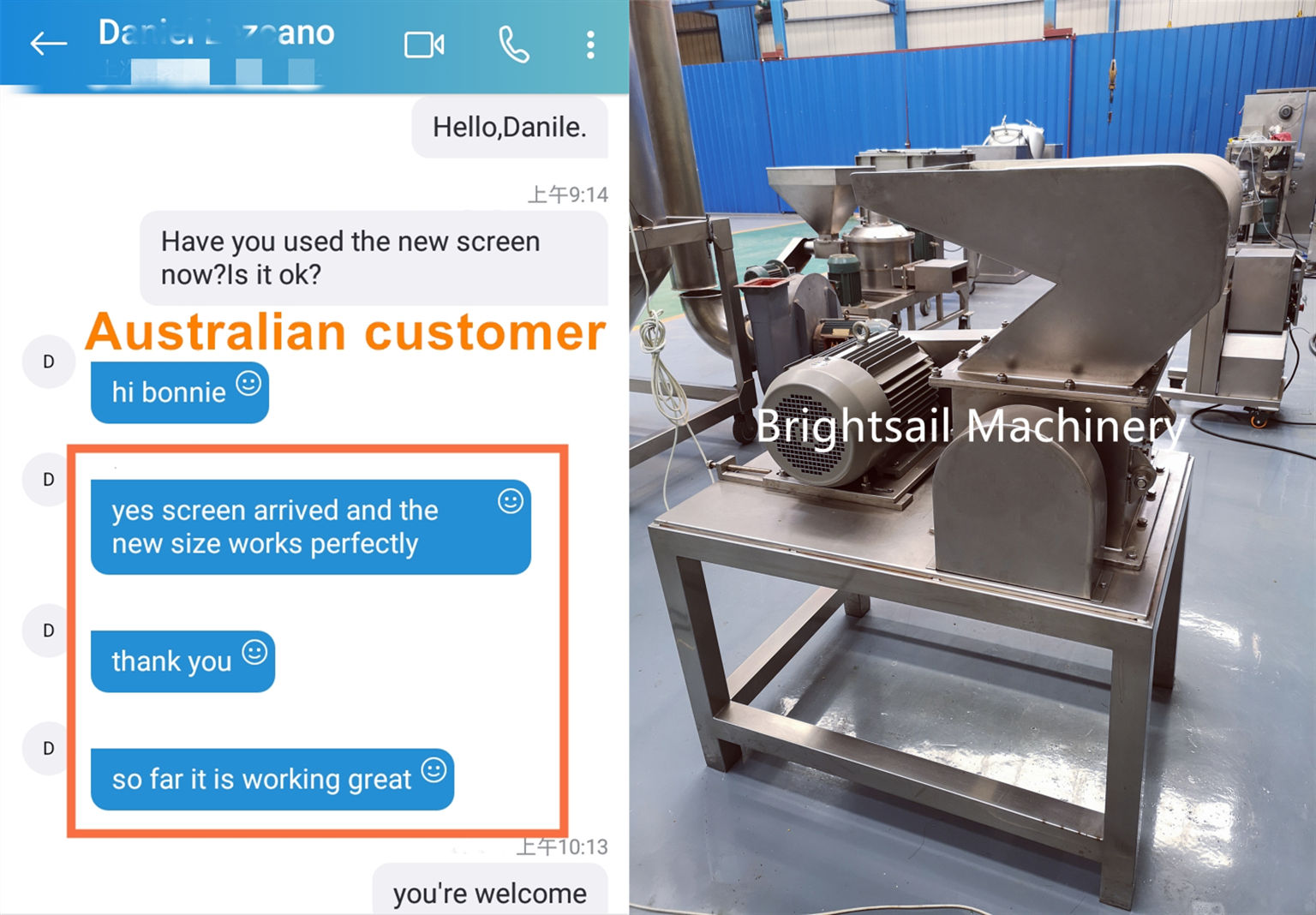

Good commenr from customer:
