Grain powder milling machine wheat flour pin mill grinder machine
with CE
BSZ pin mill specialized is applied in such trades as pharmaceutical, chemical, foodstuff,
magnetic material, powder etc.It is a new-generation crushing
equipment combining crushing,dust-collecting and continuous
discharge into a unit.
Designed according to GMP standard and wholly made of stainless
steel, this machine has no flying dust during production, and can
improve the utilization rate of material and reduce the cost of
enterprise, thus reaching the international advanced level.
Working method:
Two-way wheel is use relative inverse rotation,then improve
grinding effect.Two side disc wheel installed needle shaped
cylinder with unequal diameter, each segment of the needle bar is
arranged by 3D simulation technique, reasonable arrangement of
layout. It can effectively control the material in the needle gap
to achieve effective split results. Needle bar according to the
crushing material can be hexagonal, square, spear and so on.

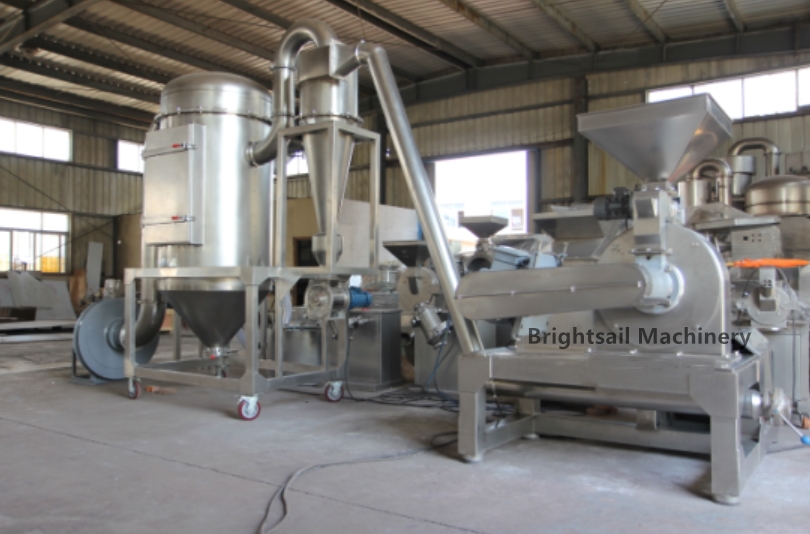

Main components:
1. Crusher part: With 2 grinding discs,and the speed of this
machine is very fast,it can make finer powder than common mill.
2. Cyclone part: It can seperate dust from powder(granules).
3. Pulse Dust Collecting box: Dust is collected inside the dust
collecting box.Inside box, there are many dust collecting bags and
the bag frames are also made of stainless steel and can be
disassembled easily.With pulse-jet cleaning, dust can be collected
very conviniently.
Main features:
1) The linear structure is simple and easy to install and maintain.
2) Use world-renowned brand components, including pneumatic
components, electrical parts and operating parts.
3) There is no screen in the grinding room, and the powder size can
be changed by changing the speed.
4) Very fine powder can be made.
Our company:
Our company-Brightsaill Machinery Co., Ltd is focus on the research
of powder equipment, such as grinding machine, mixing machine,
drying machine,powder filling machine... etc. Our products can be
applied in food, medicine, chemical and other industries and had
won a good reputation.
After over 15 year's development and accumulation, our company has
been one of the most influential equipment manufacturers in the
industry. And we have sold the machines to more than 50
countries,you can trust us to make a good machine and provide a
good service to you.
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
