Horizontal herbal powder mixer machine Zero gravity tea leaf flour
blender

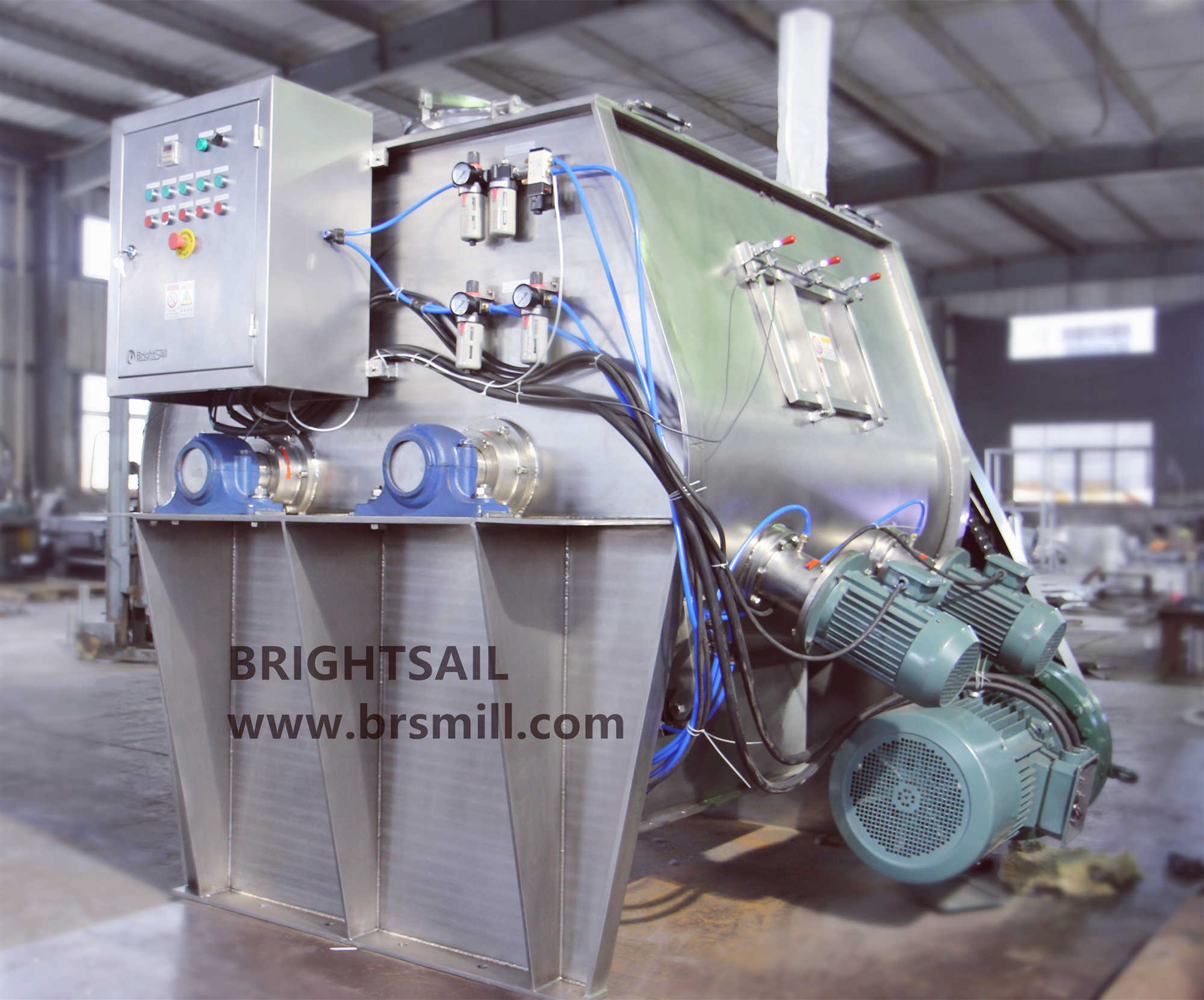

Our BSLdouble shaft paddle mixer is also called no gravity mixer. It is widely used in the
production of all kinds of powder materials, such as spices powder,
getergent powder, animal feed, cement, dry mortar, putty powder,
stucco gypsum, diatom ooze, ceramic tile adhesive, bonding mortar,
insulation mortar mixing and etc.
This machine is designed with excellent performance, simple
operation, low energy consumption, small investment, high
efficiency.
Working method:
A chain driven by a direct reducer drives the biaxial rotor to move
in reverse at a certain speed. During the movement, on the one
hand, the blade on the shaft moves the material forward, and on the
other hand, it throws the front space moving obliquely in the
radial direction. The materials on both sides move back and forth
in their opposite directions, dissolve in each other's infiltration
and mixing, form a fluidized weightless zone and a swirling vortex
in the center, and move continuously in the axial and radial
directions to form a complete azimuthal combined cycle Get a
uniform blending effect quickly.
Main features:
1. High efficiency:Rotate reversely and throw materials to
different angles,mixing time is short
2. High uniformity:Compact design and rotated shafts be filled with
hopper, mixing uniformity up to 99%
3. Low residue:Only 2-5mm gap between paddles and wall, open -type
discharge outlet
4. No leakage:Patent design ensure the rotating axle discharge
outlet leakage.
5. Full clean:Full weld and polishing process for mixing hopper,
W/o any fastening piece like screw, nut
6. Elegant appearance:The whole machine is from full stainless
steel to make its profile elegant except gear reducer case, direct
mechanism and bearing seat
Our company:
Brightsail Machinery is a professional manufacturer and supplier of
food, pharmaceutical and chemical machinery and other equipments in
China. Our main products are grinders, mixers, dryer, vibrating
screens, conveyors, packing machines and so on.Due to our good
credit and service, , we have made great achievements in the past
years. We have established long-term business relations with many
customers and some of our overseas customers have appointed us to
be their purchase agency in China. Our products are exported to
more than 50 countries, such as America, Germany, Spain, France,
Indonesia, Thailand, Pakistan, India, etc.If you are interested in
our products, please don't hesitate to contact us!
Technical data:
Model | Work volume | Speed (rpm) | Motor power(KW) | Overall size (L*W*H) (mm) | Weight (kg) | Output size (mm) |
BSL-100 | 60L | 2*57 | 3 | 1320(L)*700(W)*700(H) | 320 | 2*200*50 |
BSL-300 | 180L | 2*57 | 5.5 | 1242(L)*1278(W)*1025(H) | 750 | 2*250*60 |
BSL-500 | 300L | 2*51 | 7.5 | 1412(L)*1410(W)*1230(H) | 1000 | 2*300*80 |
BSL-1000 | 600L | 2*43 | 15 | 1875(L)*1610(W)*1350(H) | 1550 | 2*350*120 |
BSL-2000 | 1200L | 2*43 | 18.5 | 2312(L)*2160(W)*1775(H) | 2500 | 2*350*120 |
BSL-3000 | 1800L | 2*36 | 22 | 2408(L)*2400(W)*1955(H) | 2900 | 2*350*120 |
BSL-4000 | 2400L | 2*36 | 30 | 2822(L)*2546(W)*2015(H) | 3600 | 2*360*140 |
BSL-6000 | 3600L | 2*29 | 45 | 3075(L)*2980(W)*2235(H) | 5600 | 2*700*140 |
BSL-8000 | 4800L | 2*29 | 55 | 3278(L)*3426(W)*2425(H) | 7100 | 2*700*140 |
BSL-10000 | 6000L | 2*29 | 75 | 3538(L)*3645(W)*2615(H) | 8000 | 2*800*140 |
