60 to 300 mesh fine powder crusher machine ginger grinder
pulverizer with CE
BSP ultra-fine pulverizer is an advanced powder machine, the unit
has the following advantages: stable technical performance, low
noise, less consumption, high efficiency, fineness could be
adjusted, lower temperature rise, so it is very suitable for sugar,
food powder, herb and spice etc.
This unit is composed of crusher part, powder collecting set,
conveying pipe and electric control cabinet.The crusher part has
air classification equipment, which makes product granularity
arbitrary adjustable, and can prevent the excessive crushing.
Powder been crushed will be conveyed to the cyclone and dust
collector by negative pressure, then discharged by discharge valve.
Working method:
The raw material is delivered to the mill chamber by a screw
feeder, and is cut and sheared by high speed cutters and eddy
current generated by the high-frequency vibration. Due to the
action of the negative pressure, the powder been crushed goes to
public wheel, by grade wheel’s rotating and centrifugal force of
the air knife,powder whose size is bigger than grade particle size
will be sent back to crush chamber.Qualified powder will go to pipe
and be discharged.
Main features:
1. Very super fine powder making. In food industry, materials can
be grinded to more than 300 mesh(like rice, turmeric); In chemical
industry, materials can be grinded to more than 1000 mesh.(like
talc powder)
2. No need a sieve or screen mesh in crush chamber when working,
changing powder size by changing speed by inverter.
3. No dust during production, and dust can be collected in dust
collecting box.
Our service:
All products purchased in our company are guaranteed to keep in
good repair for one year.If quality problems happen in guarantee
period, our company will maintain for free.
a. Before sending the machine, we will test and adjust, so you can
use directly when you get it.
b. Operation video & instruction will be sent to clients, to help
them use the machines better.
Additionally, our company provides technical support and fittings
for life. After-sales service isn't restricted by time and we will
solve your problems in time.If you are caught in some problems when
using our products, welcome to contact us at any time.
a. Any problems occur while using, professional advice will be
offered.
b. All kinds of frequently used parts are supplied all the year
round.
c. 24hs online service support.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |

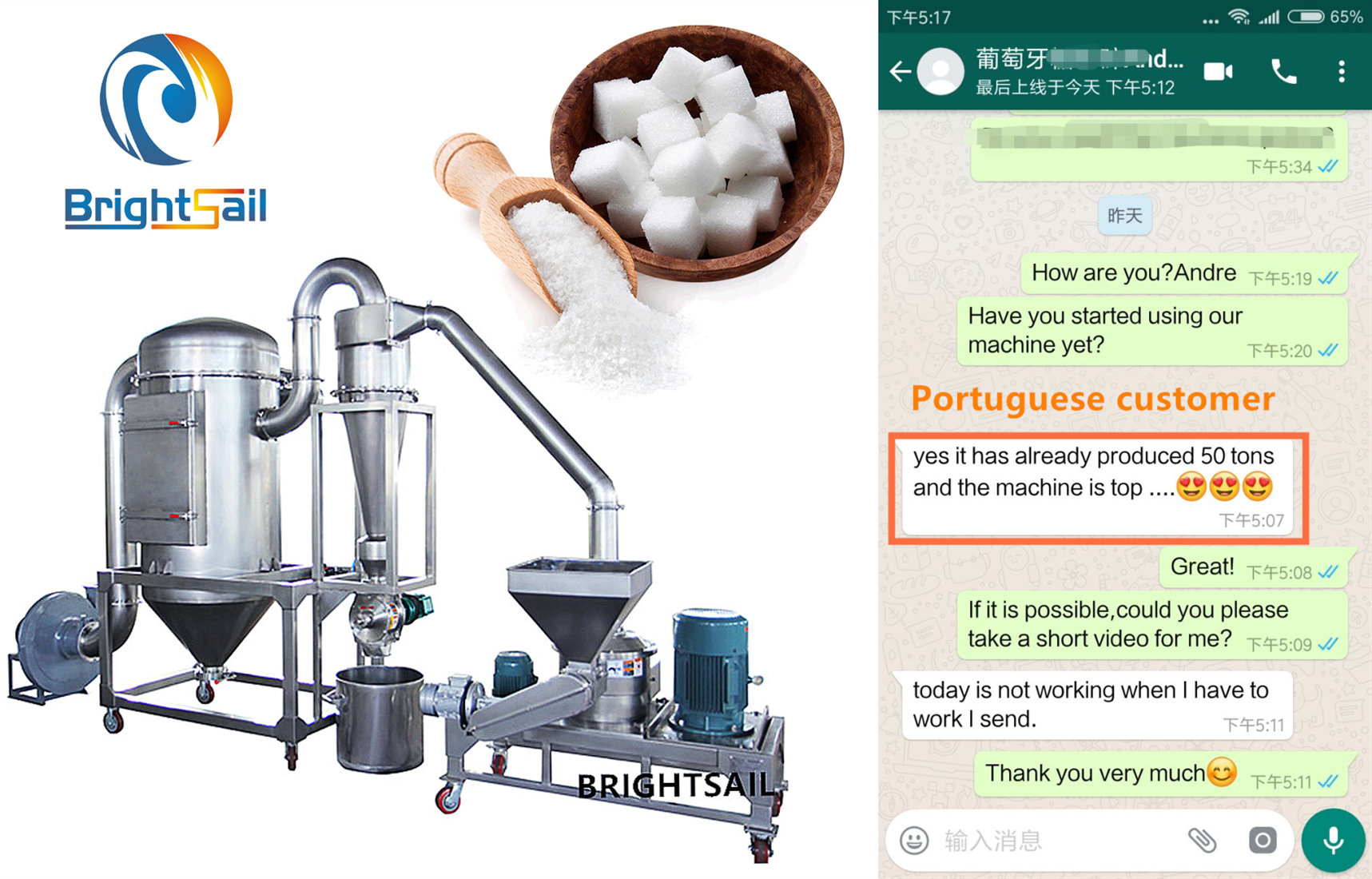

Good comment from customer:
