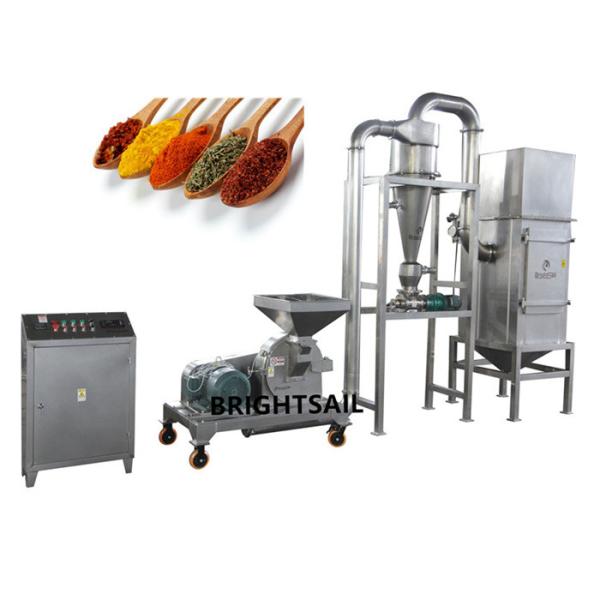

SS304 turmeric powder making machine red pepper flour mill grinder
pulverizer

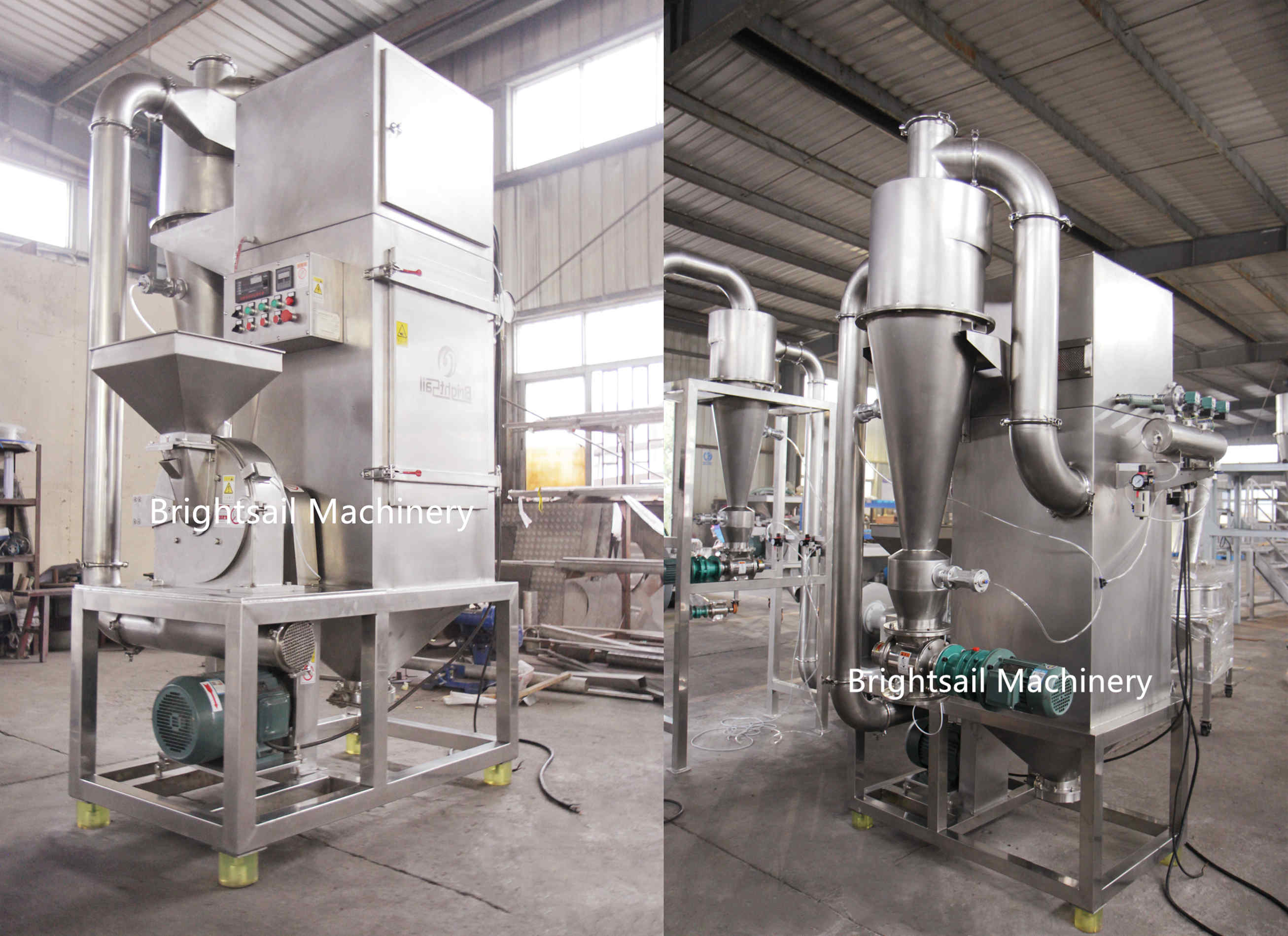

Our BSG self-absorb grinding set contains host machine,auxiliary machine, transmission
pipe,electrical control device,feeding device. Auxiliary machine
contains cyclone with bag dust collector and wind closer; The host
machine is installed with active crushing disc device, the
direction of hammer can be changed. Besides crushing, it has the
function of classifying, Winnowing type centrifugal shear and the
size of granules can be controlled. After being crushed, the
material will be sent to wind closer outlet by negative pressure.
It is an idea equipment in lines of food, pharmacy, chemical,etc.
Working method:
Material is cut and crushed by high-speed rotating blade through
screw conveyor. Material is transported into cyclone separator by
negative pressure air transportation, and material is discharged.
Dust is filtered and recovered by vacuum box through bag or filter
barrel. No dust is flying in the production process.
Main Features:
1.The machine has a independent Impeller system, which can produce
a strong air-flow to suck the powder out from the grinding chamber
in time, and also takes the heat out at same time, so that the
characteristic of the product won’t be changed by the heat.
2.Due to the strong air-flow caused during the grinding process,
the air-flow in the grinding chamber blows the fine powder out
timely (the final powder's size is adjustable by changing the
sieve’s size). Thus, the final powder won't stay in the grinding
chamber for a long time, which avoid the powder blocking situation
inside the chamber. In the meantime, it increases the production
capacity.
3.The discharging part is equipped with a sealed rotary discharging
device, it can make the discharging process be much more
smooth/even, makes sure there is no powder-flying situation during
the production.
After-sales service:
1.Gathering all necessary information for the client's project.
2.Professionally recommending the right suitable machines to the
client
3.Our engineers can provide service overseas. The service is free,
but the charge of round air-tickets, food and hotel is to the
customer’s account.
4.After a year,we can instruct you how to maintain the machine, and
spare parts are provided with the best price.
5.Compact packings for international transportation standard
deliverying to the client.
6.Offering all necessary documents(Invoice, packinglist,
Certificates, etc.) as asked.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
