10-80 mesh spice powder grinder machine turmeric hammer mill
pulverizer machine

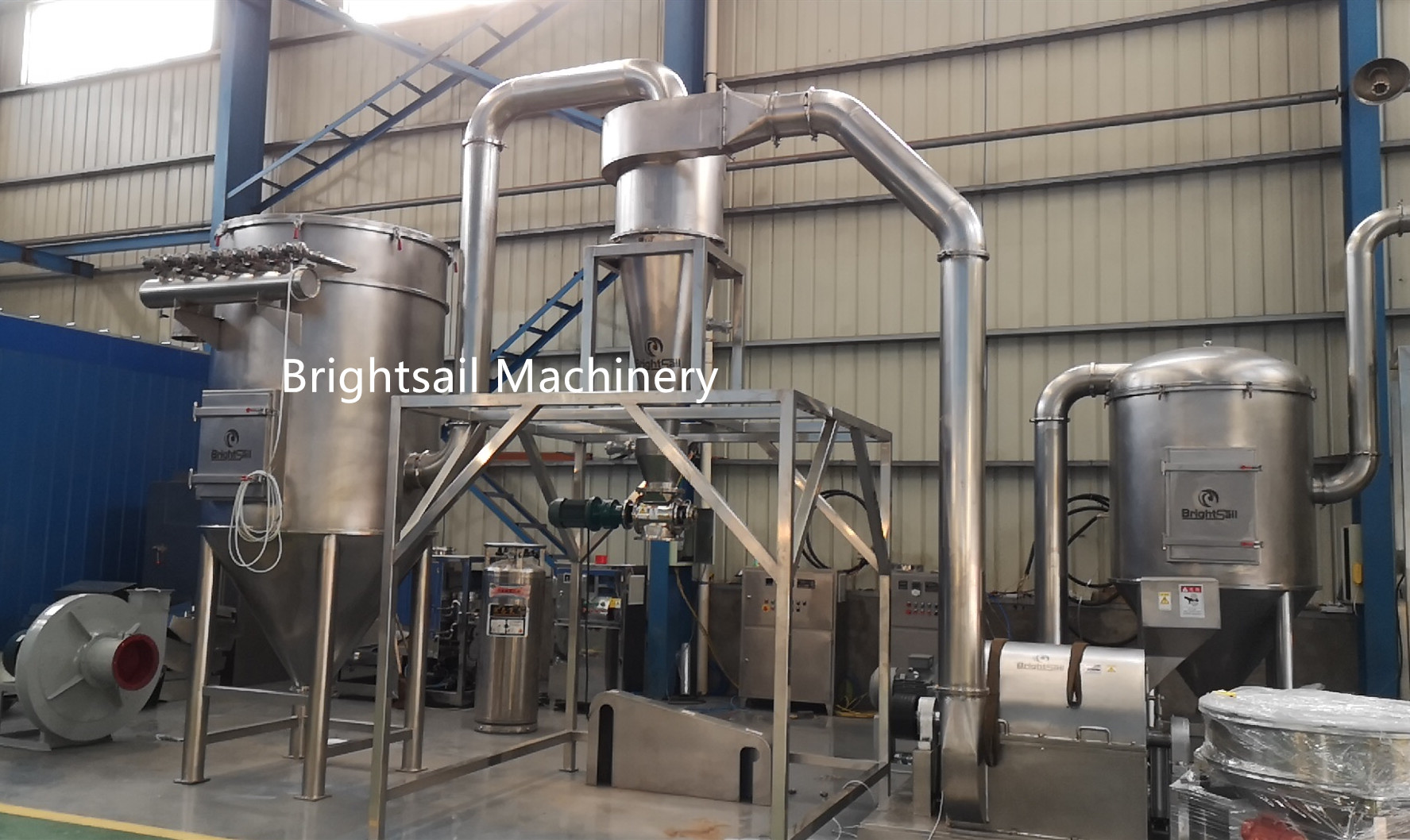

BSDF advanced hammer mill is the latest product of our company.It
consists of five parts:mill part,cyclone,dust collector,blower and
electrical control box.
It adopts welded-steel plate construction. The motor and hammer
mill are installed on the same base. Triangle tape transmission is
applied. The rotor is tested by dynamic balance, and can be
positive and negative work. The feeding hole is on the top of the
hammer mill. Hammer pieces are symmetrically arranged. This machine
features rational structure, durability, on the safe side, easy
installation, convenient operation, slight vibration, high grinding
efficiency.
Working method:
Since our BSDF advanced hammer mill combines coarse crusher,middle
fine milling and fine milling area together.Material will be milled
three times at the same time.When grinding,material is sent to mill
chamber to be crushed, by force of blower, powder will go to
cyclone and be discharged, the ultra-fine powder will be separated
to dust collecting box.The production process is dust-free and
continuous.
Among them,the first crushing area can crush hard material;The
second milling area can grinding material with fiber or oil,like
herbs,spices,roots The third milling area is for fine powder
milling,speed of it can be changed to change powder particle size.
Main features:
1) No need screen or sieve in mill chamber, change powder particle
size by changing speed through inverter.
2) Because it has no screen in mill chamber,when milling, there is
no heat rising in mill chamber.No need to worry power get stuck in
the screens or product quality get affected by the heat from the
mill. That's why it is very suitable for grinding heat-sensitive
material or material contains fiber or oil.
3) The mill part combines coarse crusher, middle fine mill and fine
mill together, which means it can makes fine powder directly from
big raw material, very effective. Then,NO need to crush big
material firstly.
4) It can save more power, its capacity is much bigger than other
same motor type traditional hammer mill.
That’s why when grinding most spices,you don't need to worry spice
powder get stuck on the screens. It can grind dry spices into 20~80
mesh.
And when grinding cassava chips,chickpea,powder can reach 150 mesh.
(much finer powder than common hammer mill)
Our company:
Brightsail Machinery has found nearly 15 years, who designs and
manufactures overall powder processing solutions for the Chemical,
Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries,
like grinding machines, mixing machines, sifting machines...etc.
Brightsail is constantly committed to develop new advanced
techniques and methods on the machines, since our goal is to be
your trusted manufacture of creative and value added process
solutions.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Good comment from customer:
FAQ:
To send you a quote,could you tell us:
1) What material you want to grind?
2) How many kgs do you need for per hour?
3) What powder particle size do you need?like
40mesh,60mesh,80mesh...etc.
