100-2000 Kg/H Spice Powder Grinding Machine Cinnamon Chili Hammer
Pulverizer

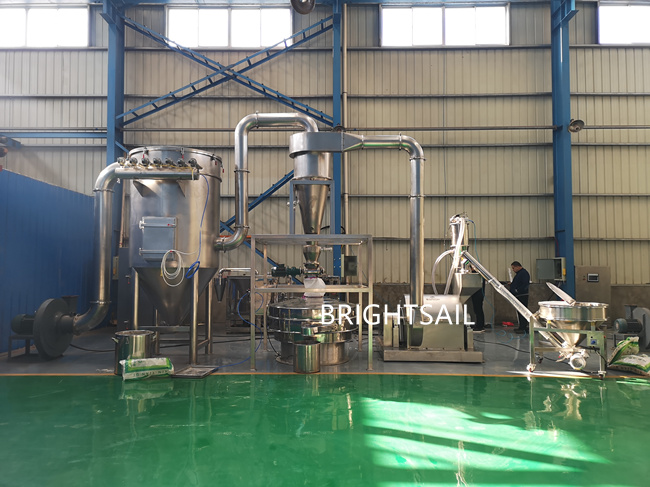

BSDF advanced hammer mill is applied in sush trades as pharmaceutical, chemical,
foodstuff,etc. It is made up of crusher, cyclone separator, pulse
dust-evacuator box and blower. It can crush spice and oily material
and it is also suitable for chinese herb with high fiber content.
The crushing size is controlled by the speed of inverter,and
continuous production can be achieved under normal temperature.
Besides, the material can be fed into the machine directly without
coarse crushing. It has the features of big capacity, not changing
the color, maintaining the physicochemical characteristics of the
material.
Working method:
The BSDF mill part includes 3 groups of knives, they are 1.coarse
crush knife group,2. middle fine crush knife group ,3.fine milling
knife group.Each group has one unit of knives and one
liner.Material is fed into the mill chamber,pass through the high
speed rotation caused by the three groups of knives one by
one.Material is crushed three times in one mill chamber, then
become fine powder.Between middle fine crush knife group and fine
mill knife group, there is a device designed for preventing coarse
granule go to fine milling area,so powder fineness is assured.The
rotor speed is controlled by inverter, different particle size is
achieved by adjusting rotation speed.There is no screen mesh in
mill chamber,so only very little heat rises in mill chamber.
Main features:
1. This grinding machine is widely used in food, chemical and
pharmaceutical industry.
2. For normal material, it can grind into 10-120 mesh.Customer can
get different powder particle size by changing the speed of
inverter.
3. This machine has different models, capacity from 100-2000 kg/h,
customers can choose the right model according to their
requirement.
4. The temperature will not rise during the crushing process
nearly, so you don't worry that the powder will be stuck on the
mill chamber.
5. Stable quality of finished product with low consumption to save
cost.
6. Simple structure, convenient cleaning and low noise.
FAQ:
1) Q: If I want to come to your company, how come?
A: You can fly to Shanghai, then go to the Shanghai railway
station, then take the high-speed train from Shanghai to Wuxi, it
takes about 40 minutes.
We will pick you up at Wuxi Railway Station, and we will drive from
Wuxi Station to our company for about 40 minutes.
There is also an airport in Wuxi. If you fly to Wuxi Airport, we
can also pick you up from Wuxi Airport and drive from Wuxi Airport
to our company for about 50 minutes.
2) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the
container, we will split the machine into several parts, then wrap
the machine with wrapping film, and then fix it in the container
with wire rope to prevent them from shaking during transportation.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Application:
Good comments from customers:
