Commercial spice powder mixing machine no gravity chili flour
paddle mixer
Our BSLdouble shaft paddle mixer is mainly used in all kinds of dry mix mortar and high-grade putty
powder with high mixing uniformity requirements,such as :anti-crack
mortar ,insulation mortar ,bonding mortar ,plaster mortar,flooring
mortar.Concrete additive,feed,chemical powder,food spices industry
also got great application. It is not suitable for mixing material
which is particularly large amount of spray and viscosity.
Working method:

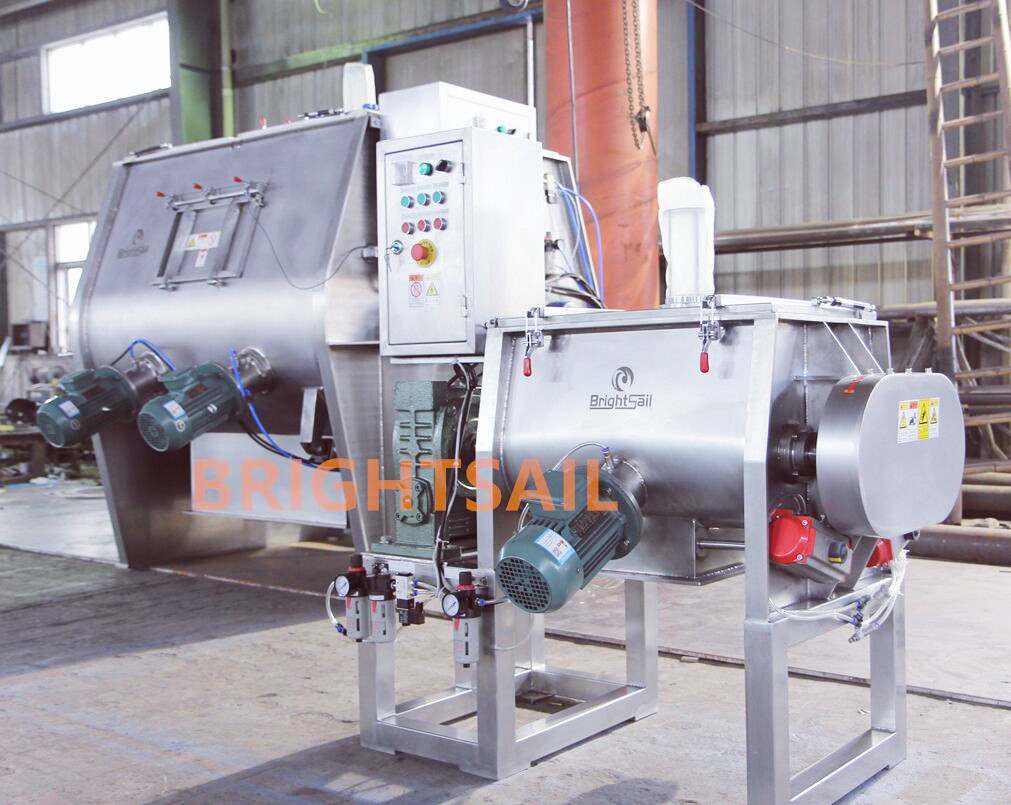

Double-shaft paddle mixer is consists of two rotors with reverse
rotation directions, welding many paddles in the rotor with
different special angles. Paddles make the materials
counterclockwise rotating along slot inner wall, and make materials
stirring left and right. The overlapped area of two rotors makes a
zero-gravity area, no matter what size, shape and bulk density
materials are, they are even mixed in the mixer.
Main features:
1. Horizontal tank body covers small area.
2. Bearing is on both ends of the mixer, the material is not easy
to enter, repair rate is low.
3. Gear box drives the auger shaft, simple maintenance, high
efficiency, save both time and labour.
4. U-shape tank bottom, easy operation, uniform mixing, no dead
zone, better for material discharge and cleaning.
5. Under the bottom or the sides of the tank, there is a flap dome
valve(pneumatic control or manual control) of the center. The valve
is arc design to make sure no material deposit and no dead angel
when mixing.
Our company:
Brightsail Machinery is a comprehensive enterprise specializing in
packing machinery, mixing machinery, feeding machinery, drying
machinery and other machineries R&D design, manufacture,sales
and serve. The product can be used for food, medicine, chemical
industry, building materials, plastics and other industries. The
main products of the company are various mixers, packers, dryers,
automation equipment and supporting production lines.Should you
have any interest in our products, please feel free to contact us!
Technical data:
Model | Work volume | Speed (rpm) | Motor power(KW) | Overall size (L*W*H) (mm) | Weight (kg) | Output size (mm) |
BSL-100 | 60L | 2*57 | 3 | 1320(L)*700(W)*700(H) | 320 | 2*200*50 |
BSL-300 | 180L | 2*57 | 5.5 | 1242(L)*1278(W)*1025(H) | 750 | 2*250*60 |
BSL-500 | 300L | 2*51 | 7.5 | 1412(L)*1410(W)*1230(H) | 1000 | 2*300*80 |
BSL-1000 | 600L | 2*43 | 15 | 1875(L)*1610(W)*1350(H) | 1550 | 2*350*120 |
BSL-2000 | 1200L | 2*43 | 18.5 | 2312(L)*2160(W)*1775(H) | 2500 | 2*350*120 |
BSL-3000 | 1800L | 2*36 | 22 | 2408(L)*2400(W)*1955(H) | 2900 | 2*350*120 |
BSL-4000 | 2400L | 2*36 | 30 | 2822(L)*2546(W)*2015(H) | 3600 | 2*360*140 |
BSL-6000 | 3600L | 2*29 | 45 | 3075(L)*2980(W)*2235(H) | 5600 | 2*700*140 |
BSL-8000 | 4800L | 2*29 | 55 | 3278(L)*3426(W)*2425(H) | 7100 | 2*700*140 |
BSL-10000 | 6000L | 2*29 | 75 | 3538(L)*3645(W)*2615(H) | 8000 | 2*800*140 |
