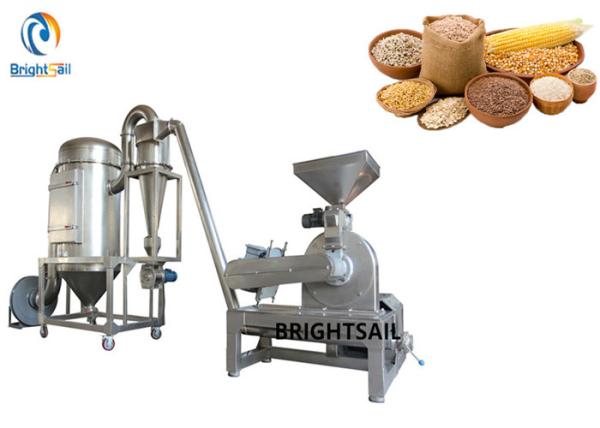

High speed grain powder making machine wheat rice flour pin mill
pulverizer
BSZ pin mill machine is suitable for pharmacy, food industry, and chemical industry. It
has wind cooling and is free of screen, it is not restrained from
material’s viscosity, rigidity and fiber, can deal with any
materials effectively. It is specially suitable for herb medicine
with fibers, and materials with grease.
Main features:
1. Simple linear structure, convenient installation and
maintenance.
2. It has two grinding discs that rotate relative to each other to
achieve high-speed rotation.
3. No sieve is needed in the grinding chamber, and the powder size
can be changed by changing the speed.
4. Can be made into very fine powder
5. It can grind materials with high sugar and oil content, such as
cocoa, coffee, spices, dried fruits, etc.
Our service:
To provide you with the best pre-sales and after-sales service:
1) Professional advice and rich experience will help to choose the
machine.
2) Long-term maintenance and thoughtful technical support.
3) Technical personnel can be sent abroad for installation.
4) One year warranty. Lifetime service. Within one year, any
problematic parts can be sent to us, and we can provide new parts
for free (only the damaged parts of the machine itself).
5) If you have any questions before or after delivery, you can
contact us at any time. We will provide technical support for free.
6) Video, instruction manual, circuit diagram and other related
materials can be provided for test operation and installation of
the machine.
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
